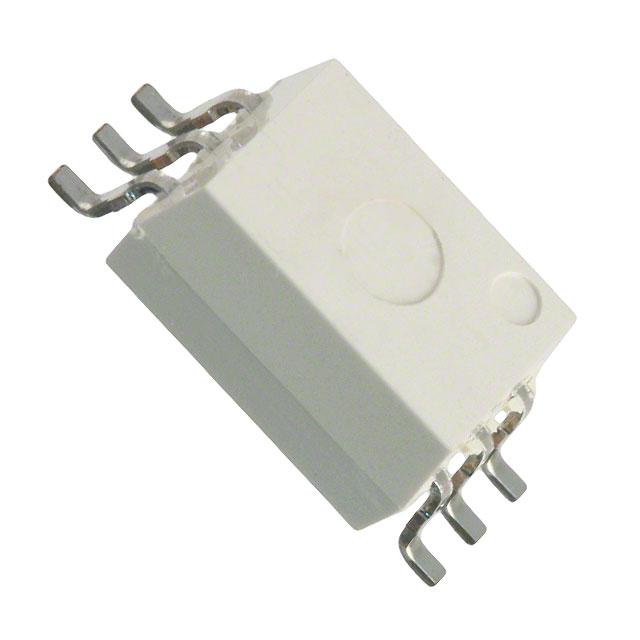

Toshiba Semiconductor and Storage
| Part Number | TLP701(TP,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 5KV GATE DRIVER 6SDIP GW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 119971 pcs | Data sheet | TLP701(TP,F).pdf |
| Voltage - Supply | 10 V ~ 30 V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.55V | Technology | Optical Coupling |
| Supplier Device Package | 6-SDIP Gull Wing | Series | - |
| Rise / Fall Time (Typ) | 50ns, 50ns | Pulse Width Distortion (Max) | - |
| Propagation Delay tpLH / tpHL (Max) | 700ns, 700ns | Packaging | Tape & Reel (TR) |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) | Other Names | TLP701 (TP,F) TLP701FTR TLP701TPF |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing |
| Current - Peak Output | 600mA | Current - Output High, Low | 400mA, 400mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 10kV/µs |
| Approvals | cUL, UL |
