TLP512(F)

Toshiba Semiconductor and Storage

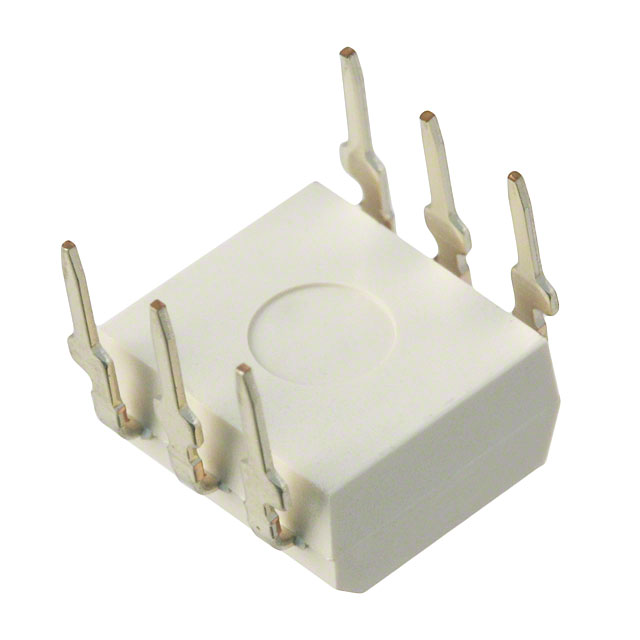

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP512(F)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISOLATOR 2.5KV TRANS 6-DIP
Datasheets:	TLP512(F).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5854 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5854 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP512(F)

Part Number	TLP512(F)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISOLATOR 2.5KV TRANS 6-DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5854 pcs	Data sheet	TLP512(F).pdf
Voltage - Output (Max)	15V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	1.65V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	800ns, 800ns (Max)	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	Transistor	Other Names	TLP512F
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 2500Vrms 1 Channel 6-DIP	Current Transfer Ratio (Min)	15% @ 16mA
Current Transfer Ratio (Max)	-	Current - Output / Channel	8mA
Current - DC Forward (If) (Max)	25mA
