TLP151A(TPR,E)

Toshiba Semiconductor and Storage

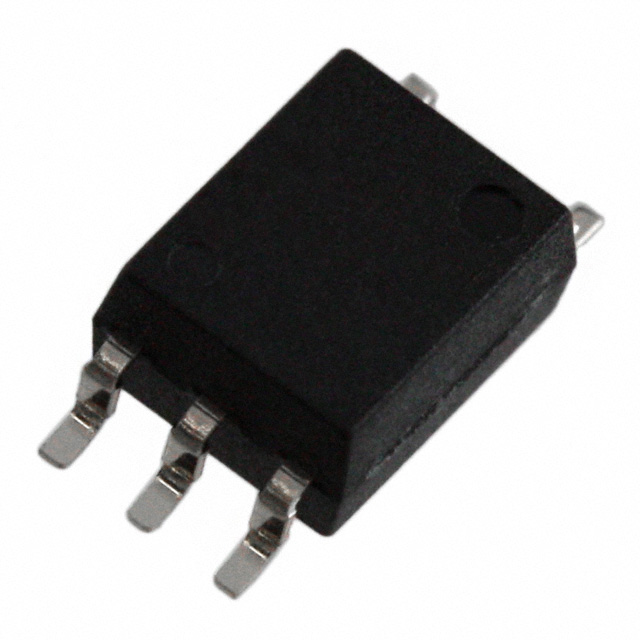

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP151A(TPR,E)
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISO 3.75KV GATE DRIVER 6SO-5
Datasheets:	TLP151A(TPR,E).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	142507 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 142507 pcs

Reference Price (In US Dollars)

3000 pcs: $0.206

6000 pcs: $0.201

15000 pcs: $0.194

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.206

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP151A(TPR,E)

Part Number	TLP151A(TPR,E)	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISO 3.75KV GATE DRIVER 6SO-5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	142507 pcs	Data sheet	TLP151A(TPR,E).pdf
Voltage - Supply	10 V ~ 30 V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.55V	Technology	Optical Coupling
Supplier Device Package	6-SO, 5 Lead	Series	-
Rise / Fall Time (Typ)	50ns, 50ns	Pulse Width Distortion (Max)	350ns
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns	Packaging	Tape & Reel (TR)
Package / Case	6-SOIC (0.179", 4.55mm Width), 5 Leads	Other Names	TLP151A(TPR,E TLP151A(TPR,E(O TLP151A(TPRE)TR TLP151ATPRE
Operating Temperature	-40°C ~ 110°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 6-SO, 5 Lead
Current - Peak Output	600mA	Current - Output High, Low	400mA, 400mA
Current - DC Forward (If) (Max)	25mA	Common Mode Transient Immunity (Min)	20kV/µs
Approvals	cUL, UL
