TC7SH86FSTPL3

Toshiba Semiconductor and Storage

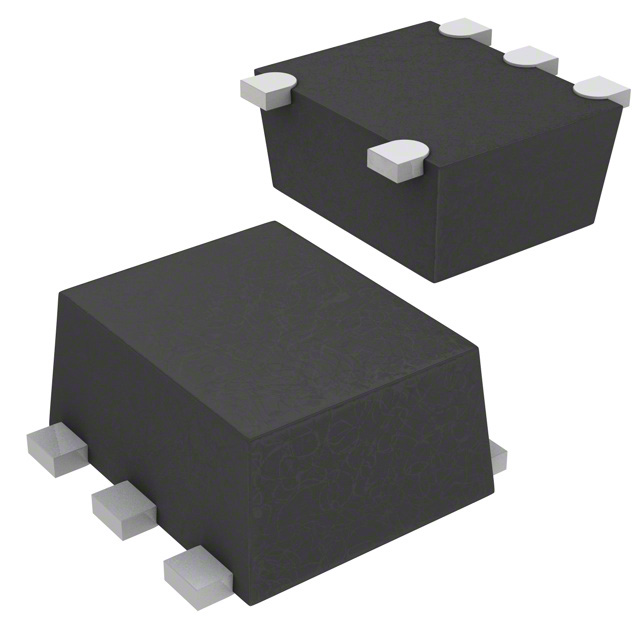

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TC7SH86FSTPL3
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	IC GATE XOR 1CH 2-INP FSV
Datasheets:	TC7SH86FSTPL3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3718 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3718 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TC7SH86FSTPL3

Part Number	TC7SH86FSTPL3	Manufacturer	Toshiba Semiconductor and Storage
Description	IC GATE XOR 1CH 2-INP FSV	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3718 pcs	Data sheet	TC7SH86FSTPL3.pdf
Voltage - Supply	2 V ~ 5.5 V	Supplier Device Package	fSV
Series	TC7SH	Packaging	Tape & Reel (TR)
Package / Case	SOT-953	Other Names	TC7SH86FS(TPL3) TC7SH86FSTPL3TR
Operating Temperature	-40°C ~ 85°C	Number of Inputs	2
Number of Circuits	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Max Propagation Delay @ V, Max CL	8.8ns @ 5V, 50pF
Logic Type	XOR (Exclusive OR)	Logic Level - Low	0.5V
Logic Level - High	1.5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	XOR (Exclusive OR) IC 1 Channel fSV
Current - Quiescent (Max)	2µA	Current - Output High, Low	8mA, 8mA
Base Part Number	7SH86
