TB6549FG(O,EL)

Toshiba Semiconductor and StorageToshiba Semiconductor and Storage

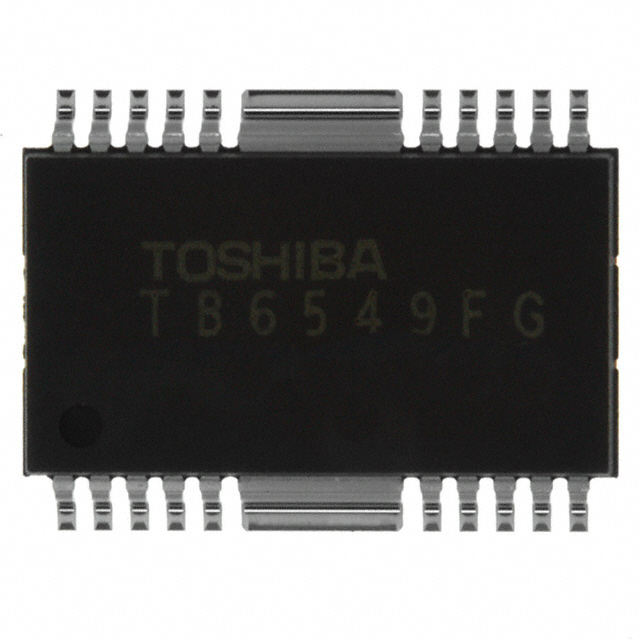

TB6549FG(O,EL) Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: TB6549FG(O,EL)
Manufacturer/Brand: Toshiba Semiconductor and Storage
Product description IC MOTOR DRIVER PAR 20HSOP
Datasheets: TB6549FG(O,EL).pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4096 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4096 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of TB6549FG(O,EL)

Part Number TB6549FG(O,EL) Manufacturer Toshiba Semiconductor and Storage
Description IC MOTOR DRIVER PAR 20HSOP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4096 pcs Data sheet TB6549FG(O,EL).pdf
Voltage - Supply 10 V ~ 27 V Voltage - Load 10 V ~ 27 V
Technology Bi-CMOS Supplier Device Package 20-HSOP
Step Resolution - Series -
Packaging Tape & Reel (TR) Package / Case 20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Output Configuration Half Bridge (2) Other Names TB6549FG (O,EL)
TB6549FG(EL)
TB6549FGOEL
TB6549FGOELTR
TB6549FGTR
TB6549FGTR-ND
Operating Temperature -20°C ~ 85°C (TA) Mounting Type Surface Mount
Motor Type - Stepper - Motor Type - AC, DC Brushed DC
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Interface PWM, Serial Function Driver - Fully Integrated, Control and Power Stage
Detailed Description Motor Driver Bi-CMOS PWM, Serial 20-HSOP Current - Output 3.5A
Base Part Number TB6549 Applications General Purpose
