TB62206FG,EL

Toshiba Semiconductor and Storage

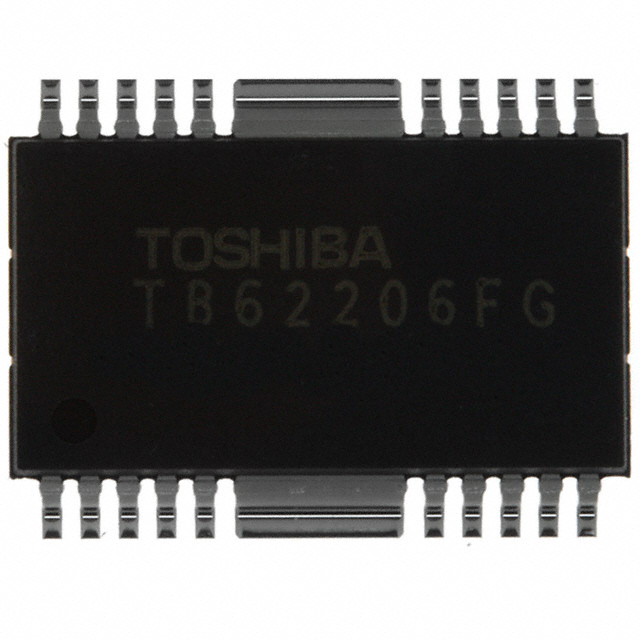

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TB62206FG,EL
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	IC MOTOR DRIVER PAR 20HSOP
Datasheets:	TB62206FG,EL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23194 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23194 pcs

Reference Price (In US Dollars)

1 pcs: $1.521

10 pcs: $1.358

25 pcs: $1.222

100 pcs: $1.114

250 pcs: $1.005

500 pcs: $0.902

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.521

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TB62206FG,EL

Part Number	TB62206FG,EL	Manufacturer	Toshiba Semiconductor and Storage
Description	IC MOTOR DRIVER PAR 20HSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23194 pcs	Data sheet	TB62206FG,EL.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Voltage - Load	13 V ~ 35 V
Technology	DMOS	Supplier Device Package	20-HSOP
Step Resolution	1, 1/2	Series	-
Packaging	Original-Reel®	Package / Case	20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Output Configuration	Half Bridge (4)	Other Names	TB62206FGDKR TB62206FGDKR-ND TB62206FGELDKR
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Bipolar Motor Driver DMOS Parallel 20-HSOP	Current - Output	1.5A
Base Part Number	TB62206	Applications	General Purpose
