SSM6K513NU,LF

Toshiba Semiconductor and Storage

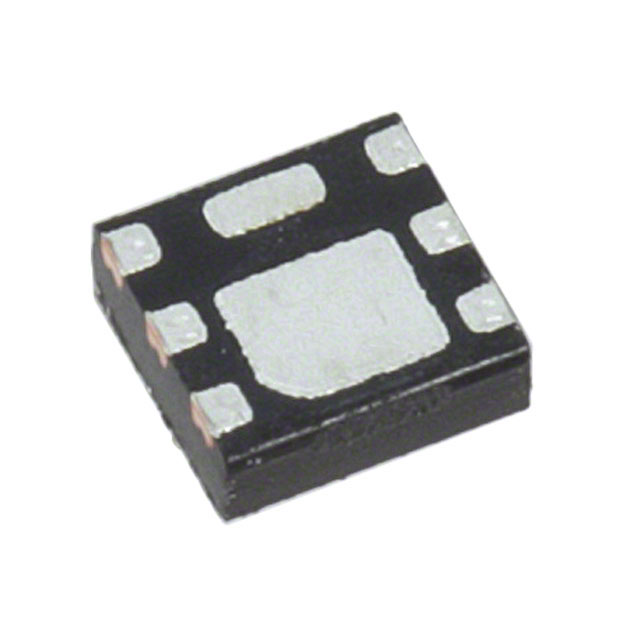

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SSM6K513NU,LF
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	MOSFET NCH 30V 15A UDFNB
Datasheets:	SSM6K513NU,LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	183482 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 183482 pcs

Reference Price (In US Dollars)

1 pcs: $0.202

10 pcs: $0.171

100 pcs: $0.128

500 pcs: $0.094

1000 pcs: $0.073

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.202

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SSM6K513NU,LF

Part Number	SSM6K513NU,LF	Manufacturer	Toshiba Semiconductor and Storage
Description	MOSFET NCH 30V 15A UDFNB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	183482 pcs	Data sheet	SSM6K513NU,LF.pdf
Vgs(th) (Max) @ Id	2.1V @ 100µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	6-UDFNB (2x2)
Series	U-MOSIX-H	Rds On (Max) @ Id, Vgs	8.9 mOhm @ 4A, 10V
Power Dissipation (Max)	1.25W (Ta)	Packaging	Original-Reel®
Package / Case	6-WDFN Exposed Pad	Other Names	SSM6K513NULFDKR
Operating Temperature	150°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1130pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	7.5nC @ 4.5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 15A (Ta) 1.25W (Ta) Surface Mount 6-UDFNB (2x2)	Current - Continuous Drain (Id) @ 25°C	15A (Ta)
