Toshiba Semiconductor and Storage
| Part Number | SSM3K316T(TE85L,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 30V 4A TSM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4284 pcs | Data sheet | 1.SSM3K316T(TE85L,F).pdf2.SSM3K316T(TE85L,F).pdf |
| Vgs(th) (Max) @ Id | 1V @ 1mA | Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | TSM |
| Series | - | Rds On (Max) @ Id, Vgs | 53 mOhm @ 3A, 10V |
| Power Dissipation (Max) | 700mW (Ta) | Packaging | Original-Reel® |

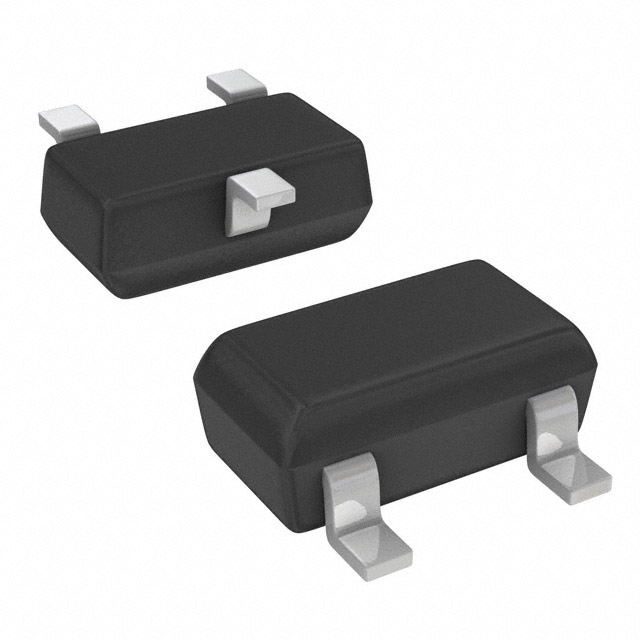

| Package / Case | TO-236-3, SC-59, SOT-23-3 | Other Names | SSM3K316T(T5LFT)DKR SSM3K316T(T5LFT)DKR-ND SSM3K316T(TE85LF)DKR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 270pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 4.3nC @ 4V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 4A (Ta) 700mW (Ta) Surface Mount TSM | Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
