Toshiba Semiconductor and Storage
| Part Number | 6N136F | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 2.5KV TRANS W/BASE 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57504 pcs | Data sheet | 6N136F.pdf |
| Voltage - Output (Max) | 15V | Voltage - Isolation | 2500Vrms |
| Voltage - Forward (Vf) (Typ) | 1.65V | Vce Saturation (Max) | - |
| Turn On / Turn Off Time (Typ) | 200ns, 500ns | Supplier Device Package | 8-DIP |
| Series | - | Rise / Fall Time (Typ) | - |

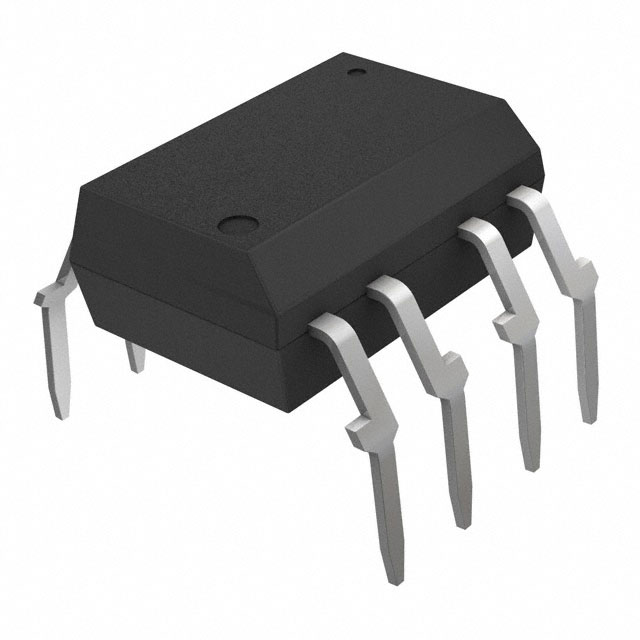

| Packaging | Tube | Package / Case | 8-DIP (0.300", 7.62mm) |
| Output Type | Transistor with Base | Other Names | 6N136(F) 6N136TF 6N136TF-ND |
| Operating Temperature | -55°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 2500Vrms 1 Channel 8-DIP | Current Transfer Ratio (Min) | 19% @ 16mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 8mA |
| Current - DC Forward (If) (Max) | 25mA | Base Part Number | 6N136 |
