PC11.09.0100A

Taoglas

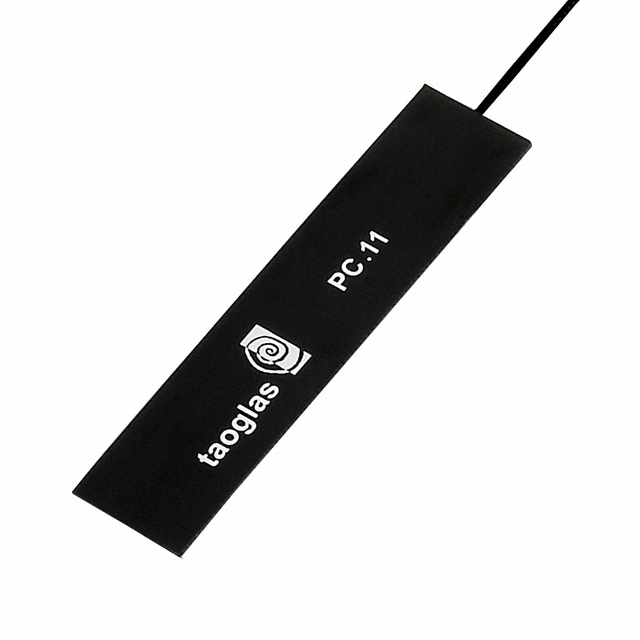

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC11.09.0100A
Manufacturer/Brand:	Taoglas
Product description	RF ANT 2.4GHZ/5.2GHZ FLAT PATCH
Datasheets:	PC11.09.0100A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12143 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12143 pcs

Reference Price (In US Dollars)

500 pcs: $3.027

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.027

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC11.09.0100A

Part Number	PC11.09.0100A	Manufacturer	Taoglas
Description	RF ANT 2.4GHZ/5.2GHZ FLAT PATCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12143 pcs	Data sheet	PC11.09.0100A.pdf
VSWR	-	Termination	Cable (100mm) - MMCX Male
Series	TheStripe™	Return Loss	-
Power - Max	2W	Packaging	Bulk
Other Names	931-1125 PC11090100A	Number of Bands	2
Mounting Type	Adhesive	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Height (Max)	0.031" (0.80mm)
Gain	3dBi, 4.5dBi	Frequency Range	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz
Frequency Group	UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)	Frequency (Center/Band)	2.4GHz, 5.2GHz
Features	-	Detailed Description	2.4GHz, 5.2GHz Bluetooth, Wi-Fi, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz 3dBi, 4.5dBi Cable (100mm) - MMCX Male Adhesive
Applications	Bluetooth, Wi-Fi, Zigbee™	Antenna Type	Flat Patch
