Taoglas
| Part Number | MA410.A.LBIJ.001 | Manufacturer | Taoglas |
|---|---|---|---|

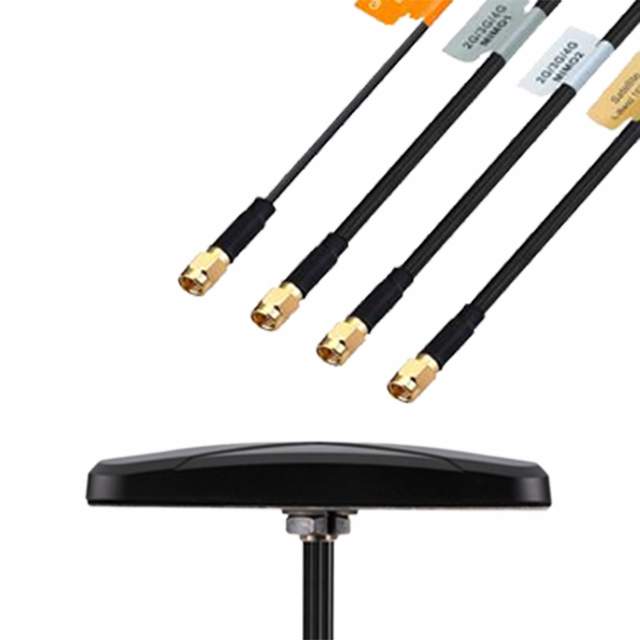

| Description | RF ANT 700/850MHZ BAR CABLE 1M | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 633 pcs | Data sheet | MA410.A.LBIJ.001.pdf |
| VSWR | 2, 3.5 | Termination | Cable (1M) - SMA Male (4) |
| Series | Storm | Return Loss | -10dB |
| Packaging | Tray | Other Names | 931-1430 |
| Number of Bands | 11 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 |
| Height (Max) | 1.219" (30.95mm) | Gain | 3.34dBi, 3.87dBi, 3.93dBi, 4.27dBi, 6.17dBi, 6.35dBi, 7.71dBi, 3.60dBi |
| Frequency Range | 698MHz ~ 960MHz, 1.559GHz ~1.607GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 3.5GHz | Features | LNA, Filter |
| Detailed Description | 700MHz, 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 3.5GHz Beidou, DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS Flat Bar RF Antenna 698MHz ~ 960MHz, 1.559GHz ~1.607GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz 3.34dBi, 3.87dBi, 3.93dBi, 4.27dBi, 6.17dBi, 6.35dBi, 7.71dBi, 3.60dBi Cable (1M) - SMA Male (4) Panel Mount | Applications | Beidou, DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS |
| Antenna Type | Flat Bar |
