Taoglas

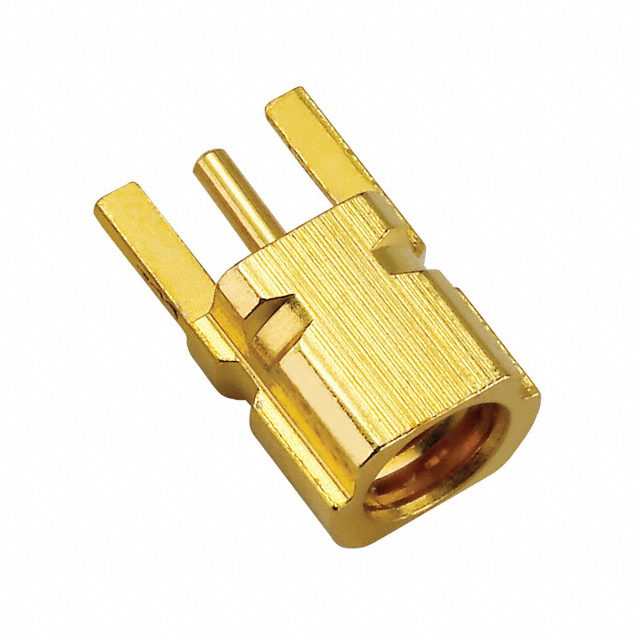

| Part Number | EMPCB.MMCXFSTJ.A.HT | Manufacturer | Taoglas |
|---|---|---|---|
| Description | CONN MMCX JACK STR 50OHM EDGEMNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33808 pcs | Data sheet | EMPCB.MMCXFSTJ.A.HT.pdf |
| Voltage Rating | 170V | Shield Termination | Solder |
| Series | - | Packaging | Tray |
| Other Names | 931-1181 EM.PCB.MMCX.F.ST.JACK.HT EMPCBMMCXFSTJACKHT |
Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Board Edge, Cutout; Surface Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | MMCX Connector Jack, Female Socket 50 Ohm Board Edge, Cutout; Surface Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | MMCX |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
