Tamura

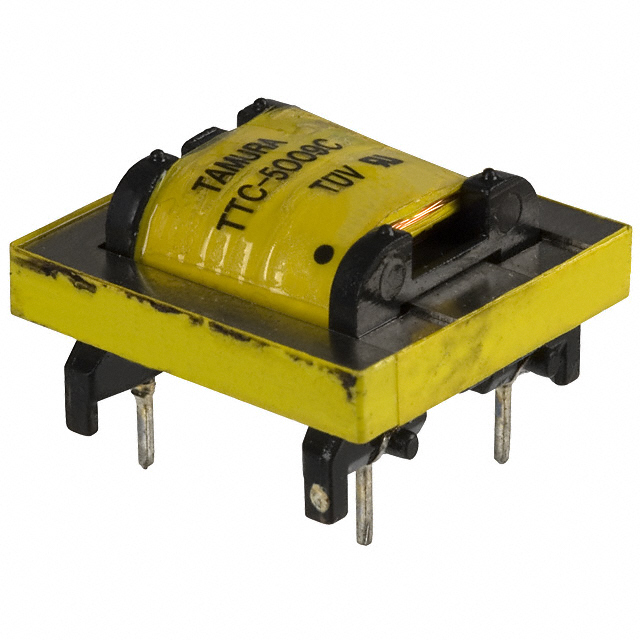

| Part Number | TTC-5009 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER COUPLING 600:530 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3157 pcs | Data sheet | TTC-5009.pdf |
| Weight | - | Voltage - Isolation | 1875VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | - |
| Termination Style | PC Pin | Size / Dimension | 0.886" L x 0.909" W (22.50mm x 23.10mm) |
| Series | TTC | Return Loss | 20dB Min @ 1kHz |
| Power Level | - | Packaging | Bulk |
| Other Names | MT7228 TTC-5009-ND TTC-5009C |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 530 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.543" (13.80mm) | Frequency Response | ±0.25dB |
| Frequency Range | 200Hz ~ 4kHz | DC Resistance (DCR) - Secondary | 45 Ohm |
| DC Resistance (DCR) - Primary | 46 Ohm | Approvals | UL1950, UL60950, EN60950 |
