Tamura

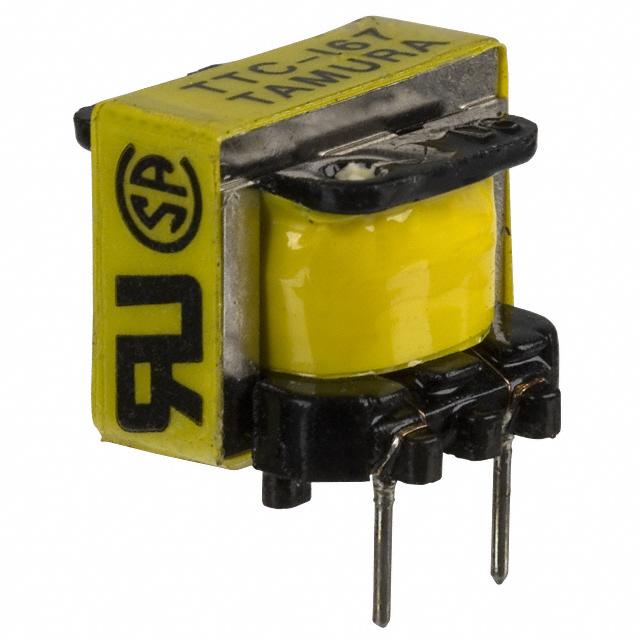

| Part Number | TTC-167 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE COUP 10K:10K 0MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11861 pcs | Data sheet | TTC-167.pdf |
| Weight | - | Voltage - Isolation | 1000VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.610" L x 0.689" W (15.50mm x 17.50mm) |
| Series | TTC | Return Loss | - |
| Power Level | - | Packaging | Bulk |
| Other Names | MT11107 MT4139 TTC167 |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.7dB Max @ 1kHz | Impedance - Secondary (Ohms) | 10k |
| Impedance - Primary (Ohms) | 10k | Height - Seated (Max) | 0.551" (14.00mm) |
| Frequency Response | ±1dB | Frequency Range | 300Hz ~ 4kHz |
| DC Resistance (DCR) - Secondary | 420 Ohm | DC Resistance (DCR) - Primary | 330 Ohm |
| Approvals | CSA-C22.2 No. 66-M1988, UL1863 |
