Tamura

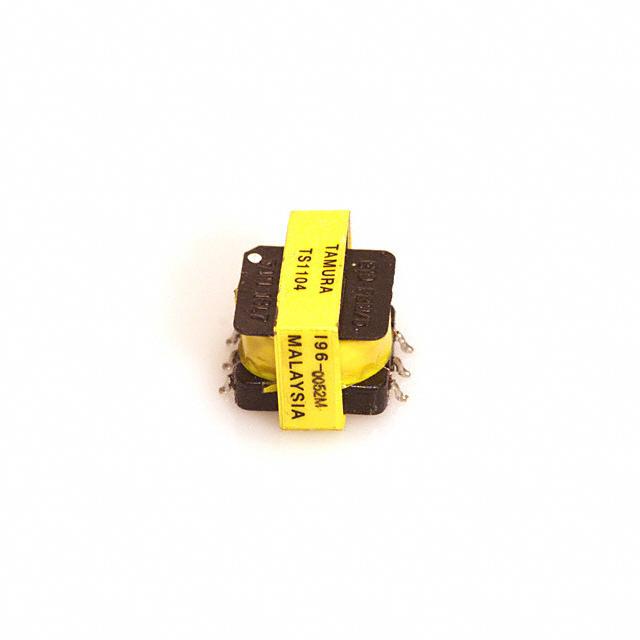

| Part Number | TS1104 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF 600 OHM SPLIT OMA -1.0 D | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17384 pcs | Data sheet | TS1104.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1.06 | Transformer Type | Data/Voice Coupling |
| Termination Style | Gull Wing | Size / Dimension | 0.791" L x 0.689" W (20.09mm x 17.50mm) |
| Series | - | Return Loss | 26dB Min @ 1kHz |
| Power Level | -45dB ~ 7dB | Packaging | Tape & Reel (TR) |
| Other Names | MT4130 TS1104(BOX) TS1104(BULK) |
Operating Temperature | - |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.5dB Max @ 1kHz | Impedance - Secondary (Ohms) | 600 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.500" (12.70mm) |
| Frequency Response | ±0.5dB | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 63 Ohm | DC Resistance (DCR) - Primary | 46 Ohm |
| Approvals | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
