Tamura

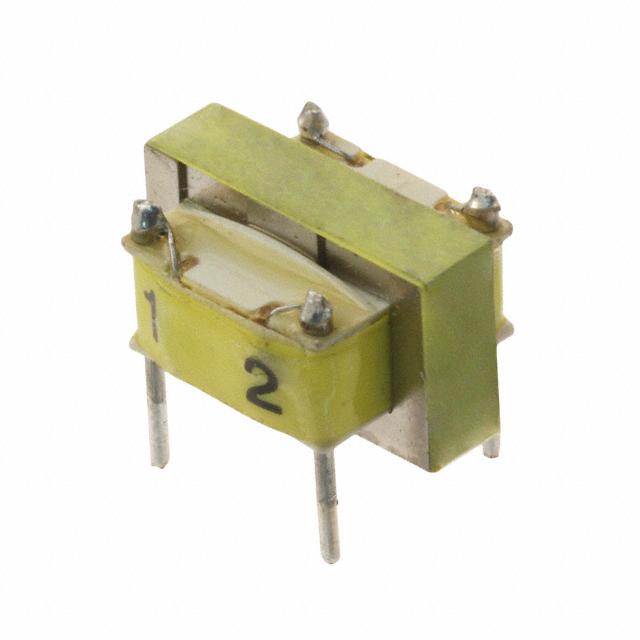

| Part Number | T1104 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER TELE 600 OHM 0 MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14127 pcs | Data sheet | T1104.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | - | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.780" L x 0.654" W (19.80mm x 16.60mm) |
| Series | - | Return Loss | 26dB Min |
| Power Level | -45dB ~ 7dB | Packaging | Tray |
| Other Names | MT4112 T1104(BOX) T1104(BULK) |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1dB Typ @ 1kHz | Impedance - Secondary (Ohms) | 600 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.469" (11.90mm) |
| Frequency Response | ±0.5dB | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 63 Ohm | DC Resistance (DCR) - Primary | 46 Ohm |
| Approvals | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
