S23P50/100D15M1

TamuraTamura

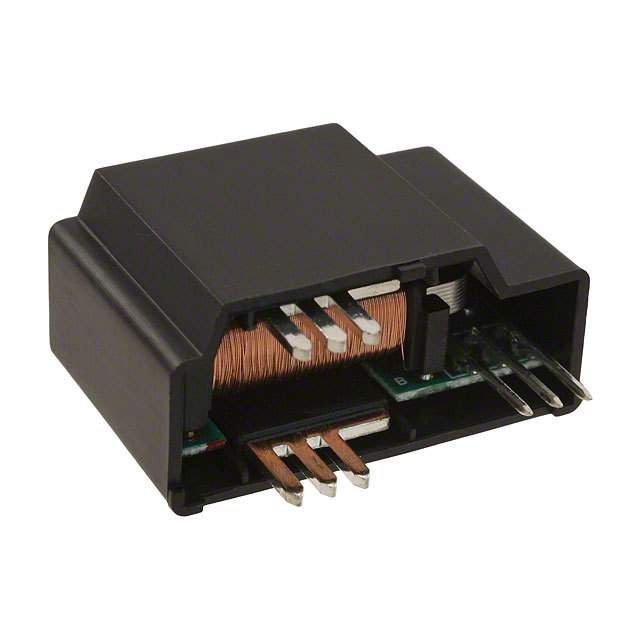

S23P50/100D15M1 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: S23P50/100D15M1
Manufacturer/Brand: Tamura
Product description SENSOR CURRENT HALL 100A AC/DC
Datasheets: S23P50/100D15M1.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 8714 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 8714 pcs
Reference Price (In US Dollars)
400 pcs
$4.389
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$4.389

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of S23P50/100D15M1

Part Number S23P50/100D15M1 Manufacturer Tamura
Description SENSOR CURRENT HALL 100A AC/DC Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 8714 pcs Data sheet S23P50/100D15M1.pdf
Voltage - Supply ±12 V ~ 15 V Series -
Sensor Type Hall Effect, Closed Loop Sensitivity -
Response Time 0.5µs Polarization Bidirectional
Packaging Bulk Package / Case Module
Output Ratiometric, Current Other Names 9-S23P50100D15M1ZY
MT7363
Q5912176
S23P50/100D15M1-ND
S23P50100D15M1
Operating Temperature -40°C ~ 85°C Number of Channels 1
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 24 Weeks Linearity ±0.15%
Lead Free Status / RoHS Status Lead free / RoHS Compliant Frequency DC ~ 100kHz
For Measuring AC/DC Detailed Description Current Sensor 100A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Current - Supply (Max) 50mA Current - Sensing 100A
Accuracy ±0.25%
