PL10-16-130B

Tamura

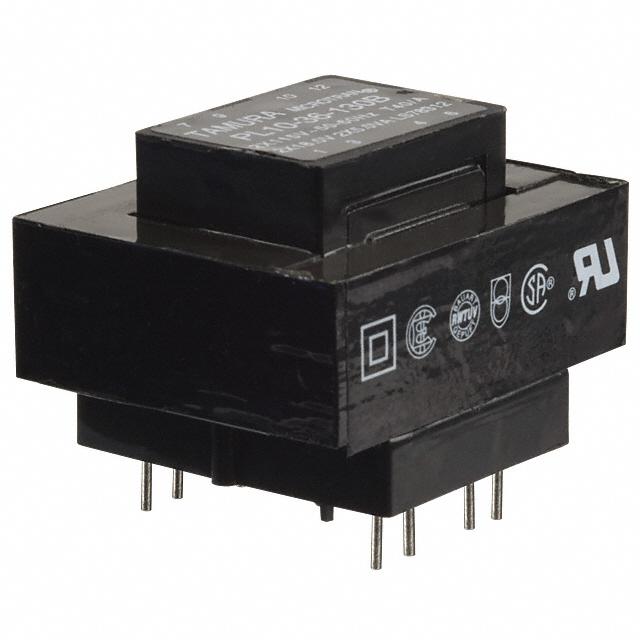

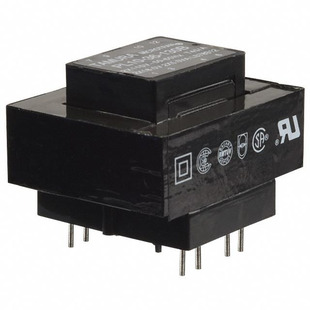

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PL10-16-130B
Manufacturer/Brand:	Tamura
Product description	XFRMR LAMINATED 10VA THRU HOLE
Datasheets:	PL10-16-130B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9160 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9160 pcs

Reference Price (In US Dollars)

1 pcs: $4.324

10 pcs: $3.193

40 pcs: $2.948

80 pcs: $2.849

120 pcs: $2.771

280 pcs: $2.732

520 pcs: $2.702

1000 pcs: $2.653

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.324

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PL10-16-130B

Part Number	PL10-16-130B	Manufacturer	Tamura
Description	XFRMR LAMINATED 10VA THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9160 pcs	Data sheet	PL10-16-130B.pdf
Weight	-	Voltage - Secondary (Full Load)	Parallel 8V, Series 16V
Voltage - Primary	115V, 230V	Voltage - Isolation	3500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	47.60mm L x 39.70mm W	Series	PL10-xx130B
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	10 VA	Other Names	MT3115 PL10-16 PL10-16(BOX) PL10-16(BULK) PL1016130B
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	26 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	36.20mm	Current - Output (Max)	Parallel 1.25A, Series 620mA
Center Tap	No
