Tamura

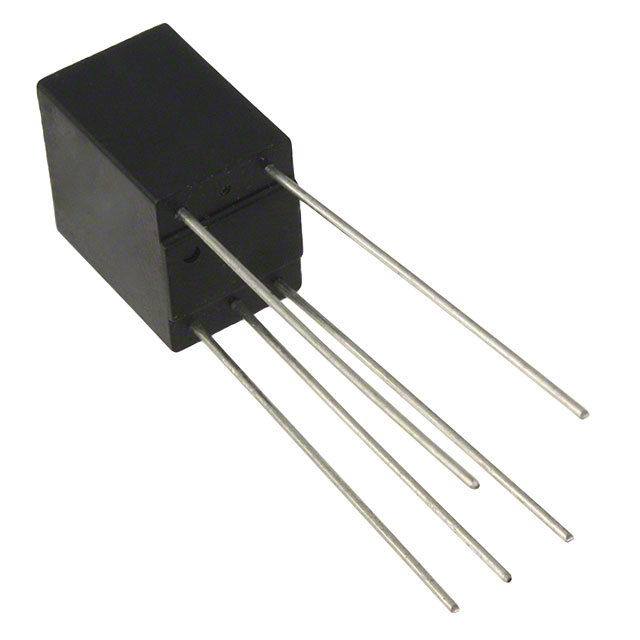

| Part Number | MET-60 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER 135:135CT 10.0MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6740 pcs | Data sheet | MET-60.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.409" L x 0.310" W (10.40mm x 7.87mm) |
| Series | MET | Return Loss | - |
| Power Level | 50mW | Packaging | Bulk |
| Other Names | MET-60-ND MET60 MT7364 |
Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Impedance - Secondary (Ohms) | 135CT |
| Impedance - Primary (Ohms) | 135 | Height - Seated (Max) | 0.465" (11.80mm) |
| Frequency Response | ±2dB | Frequency Range | 300Hz ~ 100kHz |
| DC Resistance (DCR) - Secondary | 10.8 Ohm | DC Resistance (DCR) - Primary | 10.5 Ohm |
| Approvals | - |
