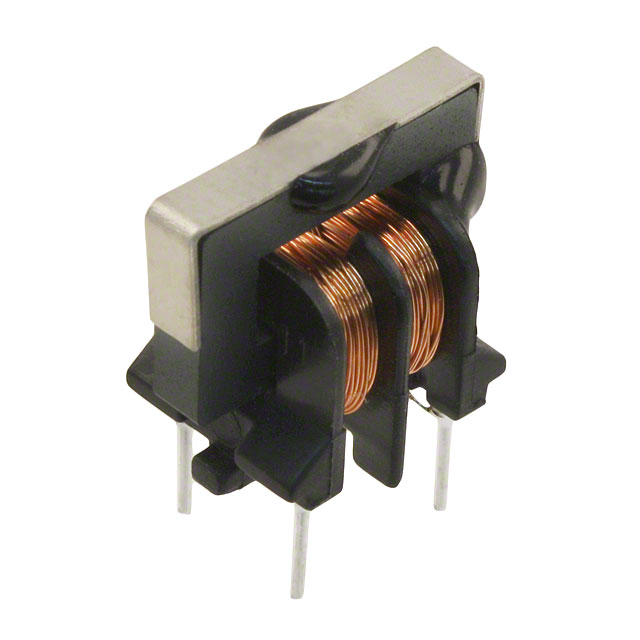

TLF9UB802WK1

Taiyo Yuden

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLF9UB802WK1
Manufacturer/Brand:	Taiyo Yuden
Product description	CMC 300MA 2LN 40 KOHM TH
Datasheets:	1.TLF9UB802WK1.pdf 2.TLF9UB802WK1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	122448 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 122448 pcs

Reference Price (In US Dollars)

1 pcs: $0.307

10 pcs: $0.269

100 pcs: $0.192

500 pcs: $0.162

1000 pcs: $0.131

2500 pcs: $0.123

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.307

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLF9UB802WK1

Part Number	TLF9UB802WK1	Manufacturer	Taiyo Yuden
Description	CMC 300MA 2LN 40 KOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	122448 pcs	Data sheet	1.TLF9UB802WK1.pdf 2.TLF9UB802WK1.pdf
Voltage Rating - DC	50V	Voltage Rating - AC	-
Size / Dimension	0.669" L x 0.433" W (17.00mm x 11.00mm)	Series	TLF9
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	587-2803 LM TLF 9UB 802W K1
Operating Temperature	-25°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance @ Frequency	40 kOhms @ 700kHz	Height (Max)	0.630" (16.00mm)
Filter Type	Signal Line	Features	-
Detailed Description	2 Line Common Mode Choke Through Hole 40 kOhms @ 700kHz 300mA DCR 3 Ohm	DC Resistance (DCR) (Max)	3 Ohm
Current Rating (Max)	300mA	Approvals	-
