NS10145T102MNA

Taiyo Yuden

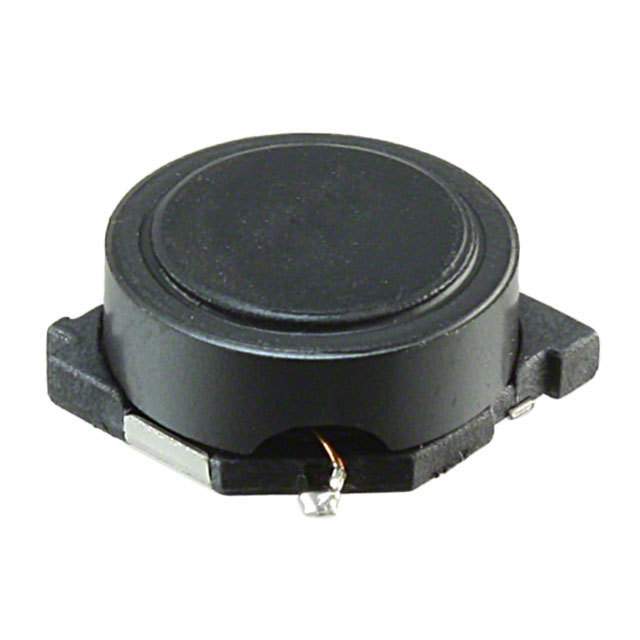

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NS10145T102MNA
Manufacturer/Brand:	Taiyo Yuden
Product description	FIXED IND 1MH 320MA 3.096 OHM
Datasheets:	1.NS10145T102MNA.pdf 2.NS10145T102MNA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	91107 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 91107 pcs

Reference Price (In US Dollars)

1 pcs: $0.34

10 pcs: $0.316

100 pcs: $0.228

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.34

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NS10145T102MNA

Part Number	NS10145T102MNA	Manufacturer	Taiyo Yuden
Description	FIXED IND 1MH 320MA 3.096 OHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	91107 pcs	Data sheet	1.NS10145T102MNA.pdf 2.NS10145T102MNA.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.398" L x 0.398" W (10.10mm x 10.10mm)
Shielding	Shielded	Series	NS
Ratings	-	Q @ Freq	-
Packaging	Original-Reel®	Package / Case	Nonstandard
Other Names	587-3117-6	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	1mH	Height - Seated (Max)	0.191" (4.85mm)
Frequency - Self Resonant	1.7MHz	Detailed Description	1mH Shielded Wirewound Inductor 320mA 3.096 Ohm Max Nonstandard
DC Resistance (DCR)	3.096 Ohm Max	Current Rating	320mA
Current - Saturation	410mA
