NR8040T220M

Taiyo Yuden

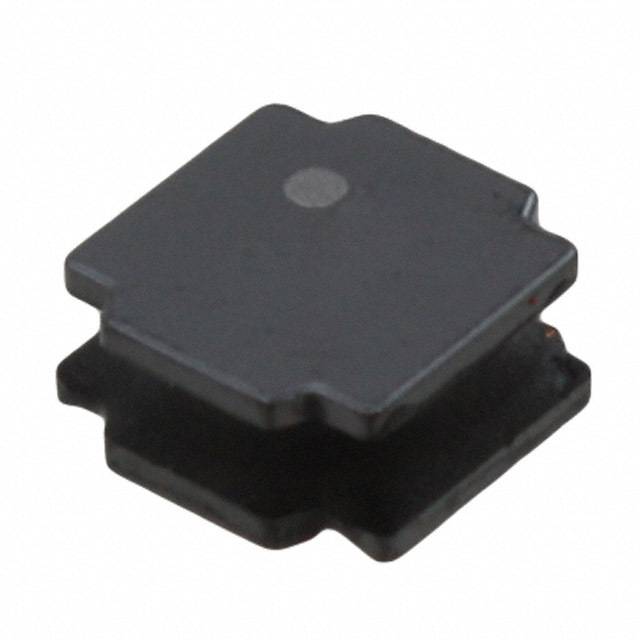

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NR8040T220M
Manufacturer/Brand:	Taiyo Yuden
Product description	FIXED IND 22UH 2.2A 85.8 MOHM
Datasheets:	1.NR8040T220M.pdf 2.NR8040T220M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	502941 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 502941 pcs

Reference Price (In US Dollars)

1000 pcs: $0.064

3000 pcs: $0.061

5000 pcs: $0.057

10000 pcs: $0.055

25000 pcs: $0.054

50000 pcs: $0.052

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.064

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NR8040T220M

Part Number	NR8040T220M	Manufacturer	Taiyo Yuden
Description	FIXED IND 22UH 2.2A 85.8 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	502941 pcs	Data sheet	1.NR8040T220M.pdf 2.NR8040T220M.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Shielding	Shielded	Series	NR
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	587-2002-2 LM NR 8040T 220M	Operating Temperature	-25°C ~ 120°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	22µH	Height - Seated (Max)	0.157" (4.00mm)
Frequency - Self Resonant	13MHz	Detailed Description	22µH Shielded Wirewound Inductor 2.2A 85.8 mOhm Max Nonstandard
DC Resistance (DCR)	85.8 mOhm Max	Current Rating	2.2A
Current - Saturation	2.2A
