CBC2016T2R2MV

Taiyo Yuden

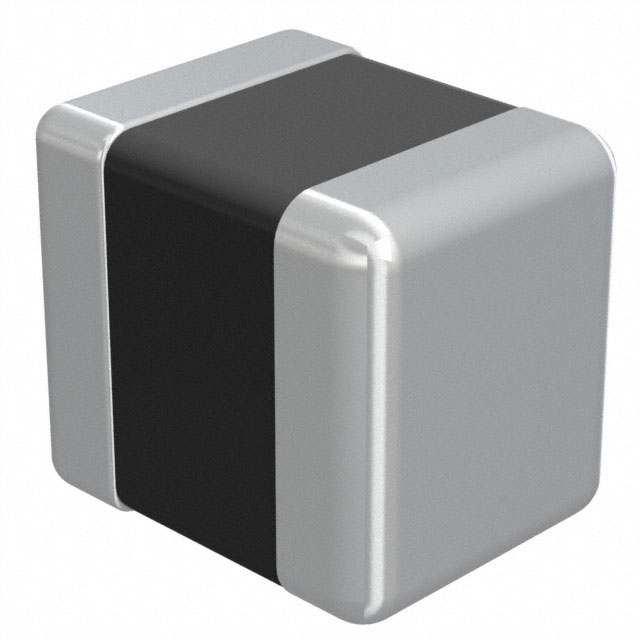

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CBC2016T2R2MV
Manufacturer/Brand:	Taiyo Yuden
Product description	FIXED IND 2.2UH 720MA 260 MOHM
Datasheets:	1.CBC2016T2R2MV.pdf 2.CBC2016T2R2MV.pdf 3.CBC2016T2R2MV.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	724142 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 724142 pcs

Reference Price (In US Dollars)

2000 pcs: $0.043

4000 pcs: $0.04

6000 pcs: $0.038

10000 pcs: $0.037

50000 pcs: $0.034

100000 pcs: $0.033

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.043

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CBC2016T2R2MV

Part Number	CBC2016T2R2MV	Manufacturer	Taiyo Yuden
Description	FIXED IND 2.2UH 720MA 260 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	724142 pcs	Data sheet	1.CBC2016T2R2MV.pdf 2.CBC2016T2R2MV.pdf 3.CBC2016T2R2MV.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	0806 (2016 Metric)	Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Shielding	Unshielded	Series	CB, C Type
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	0806 (2016 Metric)
Other Names	587-3697-2 LQ CB C2016T2R2M V	Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	7.96MHz
Inductance	2.2µH	Height - Seated (Max)	0.071" (1.80mm)
Frequency - Self Resonant	70MHz	Detailed Description	2.2µH Unshielded Wirewound Inductor 625mA 260 mOhm Max 0806 (2016 Metric)
DC Resistance (DCR)	260 mOhm Max	Current Rating	625mA
Current - Saturation	750mA
