TSM680P06CH X0G

TSC (Taiwan Semiconductor)

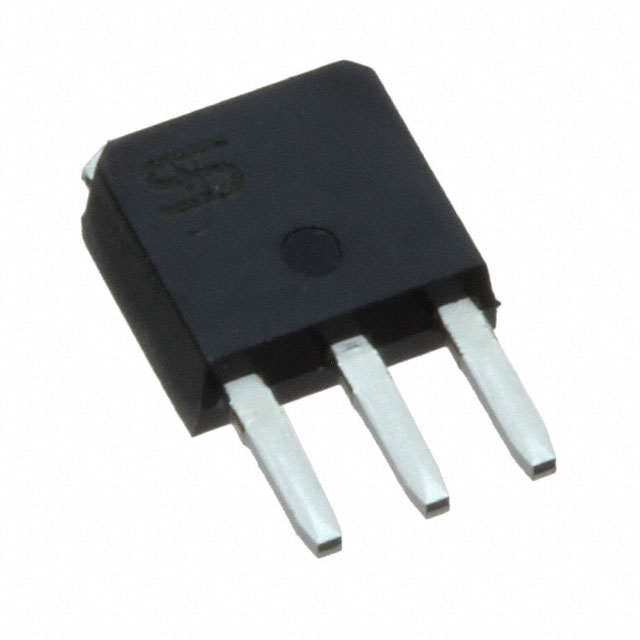

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TSM680P06CH X0G
Manufacturer/Brand:	TSC (Taiwan Semiconductor)
Product description	MOSFET P-CHANNEL 60V 18A TO251
Datasheets:	TSM680P06CH X0G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	124368 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 124368 pcs

Reference Price (In US Dollars)

1 pcs: $0.264

10 pcs: $0.222

100 pcs: $0.166

500 pcs: $0.122

1000 pcs: $0.094

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TSM680P06CH X0G

Part Number	TSM680P06CH X0G	Manufacturer	TSC (Taiwan Semiconductor)
Description	MOSFET P-CHANNEL 60V 18A TO251	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	124368 pcs	Data sheet	TSM680P06CH X0G.pdf
Vgs(th) (Max) @ Id	2.2V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-251 (IPAK)
Series	-	Rds On (Max) @ Id, Vgs	68 mOhm @ 6A, 10V
Power Dissipation (Max)	20W (Tc)	Packaging	Tube
Package / Case	TO-251-3 Stub Leads, IPak	Other Names	TSM680P06CH X0G-ND TSM680P06CHX0G
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	30 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	870pF @ 30V
Gate Charge (Qg) (Max) @ Vgs	16.4nC @ 10V	FET Type	P-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Drain to Source Voltage (Vdss)	60V	Detailed Description	P-Channel 60V 18A (Tc) 20W (Tc) Through Hole TO-251 (IPAK)
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
