TSC (Taiwan Semiconductor)
| Part Number | TSM085P03CV RGG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET P-CH 30V 64A 8PDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103764 pcs | Data sheet | TSM085P03CV RGG.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Vgs (Max) | ±20V |

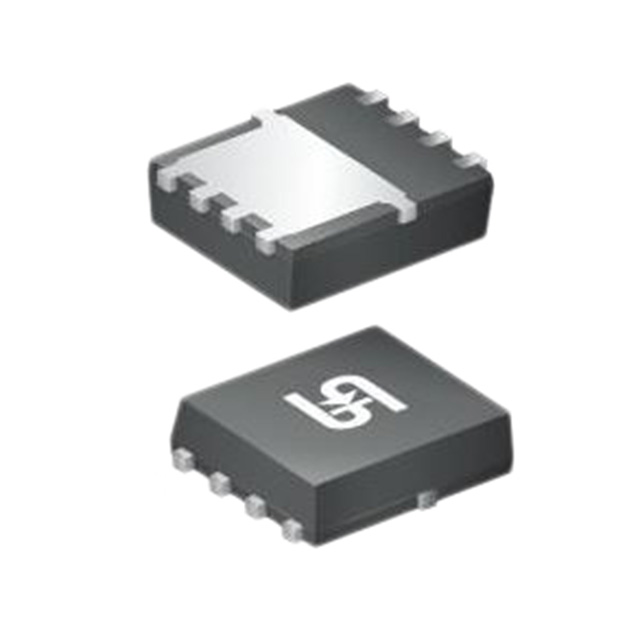

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-PDFN (3x3) |
| Series | - | Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 14A, 10V |
| Power Dissipation (Max) | 50W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerWDFN | Other Names | TSM085P03CV RGGCT TSM085P03CV RGGCT-ND TSM085P03CVRGGCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3234pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 55nC @ 10V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | P-Channel 30V 64A (Tc) 50W (Tc) Surface Mount 8-PDFN (3x3) | Current - Continuous Drain (Id) @ 25°C | 64A (Tc) |
