TSA1036CX RFG

TSC (Taiwan Semiconductor)

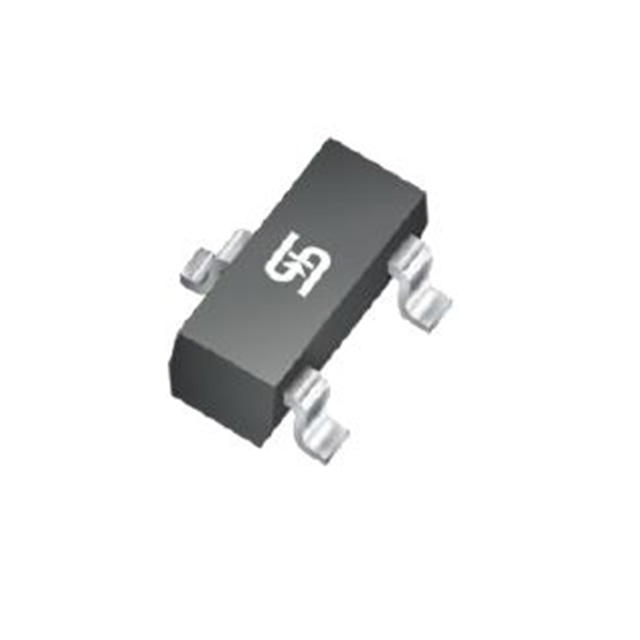

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TSA1036CX RFG
Manufacturer/Brand:	TSC (Taiwan Semiconductor)
Product description	TRANSISTOR, PNP, -30V, -0.6A, 82
Datasheets:	TSA1036CX RFG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1612381 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1612381 pcs

Reference Price (In US Dollars)

12000 pcs: $0.02

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.02

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TSA1036CX RFG

Part Number	TSA1036CX RFG	Manufacturer	TSC (Taiwan Semiconductor)
Description	TRANSISTOR, PNP, -30V, -0.6A, 82	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1612381 pcs	Data sheet	TSA1036CX RFG.pdf
Voltage - Collector Emitter Breakdown (Max)	60V	Vce Saturation (Max) @ Ib, Ic	400mV @ 15mA, 150mA
Transistor Type	PNP	Supplier Device Package	SOT-23
Series	-	Power - Max	225mW
Packaging	Tape & Reel (TR)	Package / Case	TO-236-3, SC-59, SOT-23-3
Other Names	TSA1036CX RFG-ND TSA1036CXRFG	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	200MHz	Detailed Description	Bipolar (BJT) Transistor PNP 60V 600mA 200MHz 225mW Surface Mount SOT-23
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V	Current - Collector Cutoff (Max)	10nA (ICBO)
Current - Collector (Ic) (Max)	600mA
