TSC (Taiwan Semiconductor)

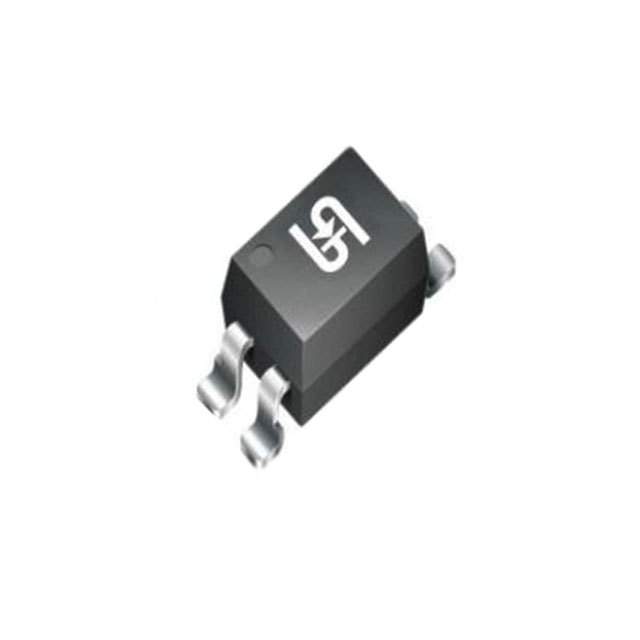

| Part Number | TPC817S1B RAG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | OPTOISO 5KV TRANS 4SOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 176725 pcs | Data sheet | TPC817S1B RAG.pdf |
| Voltage - Output (Max) | 80V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.2V | Vce Saturation (Max) | 200mV |
| Turn On / Turn Off Time (Typ) | - | Supplier Device Package | 4-SOP |
| Series | TPC817 | Rise / Fall Time (Typ) | 4µs, 3µs |
| Packaging | Original-Reel® | Package / Case | 4-SMD |
| Output Type | Transistor | Other Names | TPC817S1B RAGDKR TPC817S1B RAGDKR-ND TPC817S1BRAGDKR |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP |
| Current Transfer Ratio (Min) | 130% @ 5mA | Current Transfer Ratio (Max) | 260% @ 5mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
