SD103AW RHG

TSC (Taiwan Semiconductor)TSC (Taiwan Semiconductor)

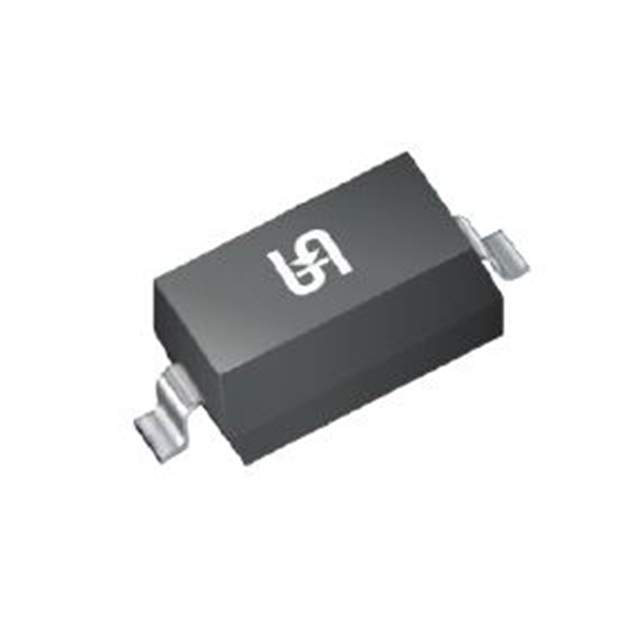

SD103AW RHG Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SD103AW RHG
Manufacturer/Brand: TSC (Taiwan Semiconductor)
Product description DIODE SCHOTTKY 40V 350MA SOD123
Datasheets: SD103AW RHG.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3148753 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3148753 pcs
Reference Price (In US Dollars)
18000 pcs
$0.01
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.01

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SD103AW RHG

Part Number SD103AW RHG Manufacturer TSC (Taiwan Semiconductor)
Description DIODE SCHOTTKY 40V 350MA SOD123 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3148753 pcs Data sheet SD103AW RHG.pdf
Voltage - Forward (Vf) (Max) @ If 600mV @ 200mA Voltage - DC Reverse (Vr) (Max) 40V
Supplier Device Package SOD-123 Speed Fast Recovery = 200mA (Io)
Series - Packaging Tape & Reel (TR)
Package / Case SOD-123 Other Names SD103AW RHG-ND
SD103AWRHG
Operating Temperature - Junction 125°C (Max) Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 30 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Diode Type Schottky
Detailed Description Diode Schottky 40V 350mA Surface Mount SOD-123 Current - Reverse Leakage @ Vr 5µA @ 40V
Current - Average Rectified (Io) 350mA Capacitance @ Vr, F 50pF @ 0V, 1MHz
