TMC5062-LA

TRINAMIC Motion Control GmbH

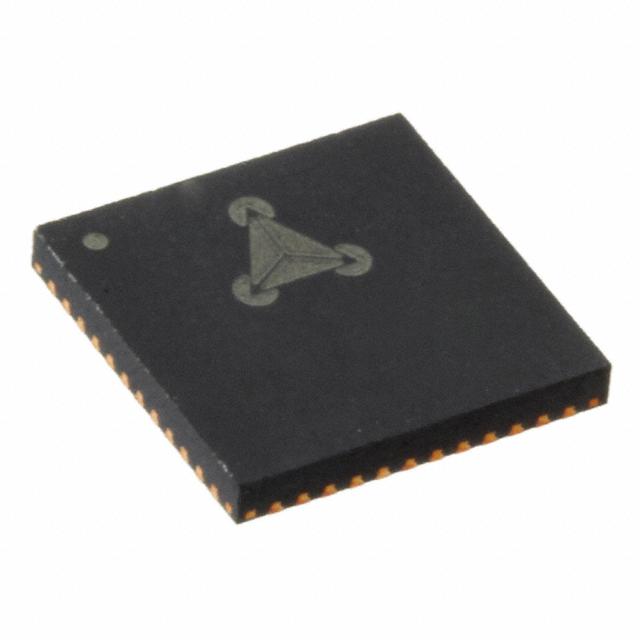

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMC5062-LA
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	IC MOTOR CTRLR & DVR 48QFN
Datasheets:	TMC5062-LA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18846 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18846 pcs

Reference Price (In US Dollars)

1248 pcs: $2.102

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.102

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMC5062-LA

Part Number	TMC5062-LA	Manufacturer	TRINAMIC Motion Control GmbH
Description	IC MOTOR CTRLR & DVR 48QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18846 pcs	Data sheet	TMC5062-LA.pdf
Voltage - Supply	3.3 V ~ 5.5 V	Voltage - Load	4.57 V ~ 20 V
Technology	Power MOSFET	Supplier Device Package	48-QFN (7x7)
Step Resolution	1 ~ 1/256	Series	-
Packaging	Tray	Package / Case	48-VFQFN Exposed Pad
Output Configuration	Half Bridge (8)	Other Names	00-0113 1460-1094
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	-
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	RS-232, SPI
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Bipolar Motor Driver Power MOSFET RS-232, SPI 48-QFN (7x7)
Current - Output	1.1A	Applications	General Purpose
