TRINAMIC Motion Control GmbH

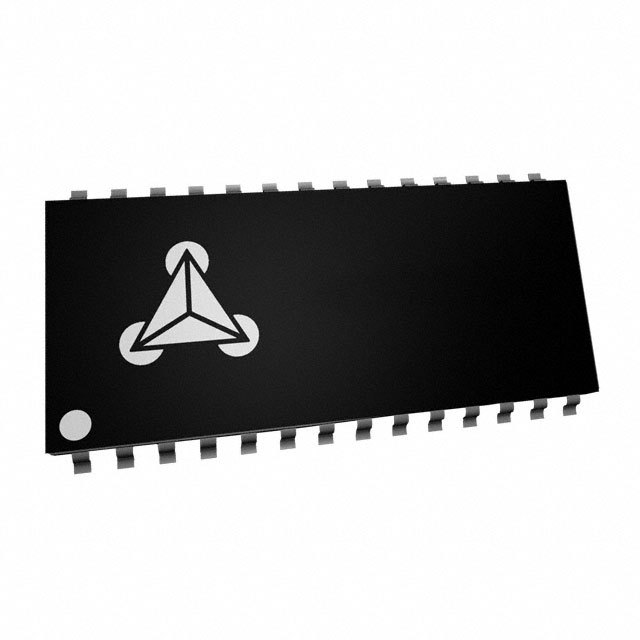

| Part Number | TMC249A-SA | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | IC MOTOR CTRLR SPI 28SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6672 pcs | Data sheet | TMC249A-SA.pdf |
| Voltage - Supply | 3.3 V ~ 5.5 V | Voltage - Load | - |
| Technology | HVCMOS | Supplier Device Package | 28-SOIC |
| Step Resolution | 1 ~ 1/64 | Series | - |
| Packaging | Tube | Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Output Configuration | Pre-Driver - Half Bridge (4) | Other Names | 00-0015 1460-1056-5 1460-10565-5 |
| Operating Temperature | -25°C ~ 125°C (TA) | Mounting Type | Surface Mount |
| Motor Type - Stepper | Bipolar | Motor Type - AC, DC | - |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | SPI |
| Function | Controller - Commutation, Direction Management | Detailed Description | Bipolar Motor Driver HVCMOS SPI 28-SOIC |
| Current - Output | - | Applications | General Purpose |
