TMC2224-LA-T

TRINAMIC Motion Control GmbH

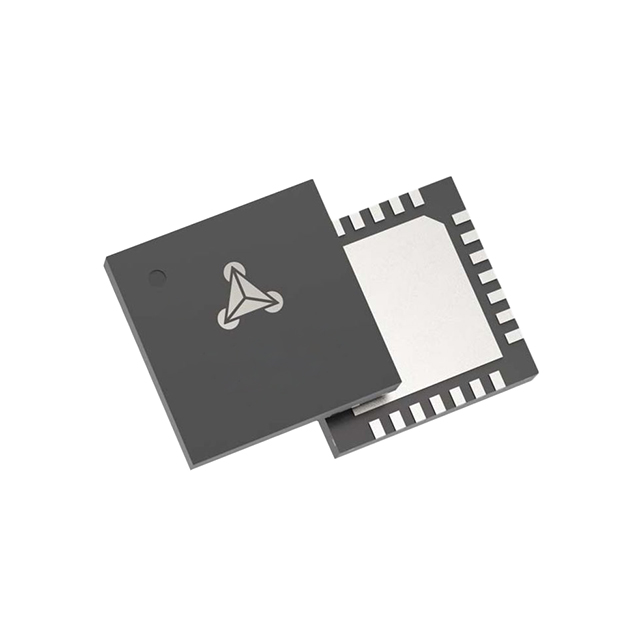

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMC2224-LA-T
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	IC STEPPER MOTOR DRIVER 28QFN
Datasheets:	TMC2224-LA-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65265 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 65265 pcs

Reference Price (In US Dollars)

3000 pcs: $0.463

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.463

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMC2224-LA-T

Part Number	TMC2224-LA-T	Manufacturer	TRINAMIC Motion Control GmbH
Description	IC STEPPER MOTOR DRIVER 28QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65265 pcs	Data sheet	TMC2224-LA-T.pdf
Voltage - Supply	5.5 V ~ 36 V	Voltage - Load	5.5 V ~ 36 V
Technology	Power MOSFET	Supplier Device Package	28-QFN
Step Resolution	1 ~ 1/256	Series	-
Packaging	Tape & Reel (TR)	Package / Case	28-VFQFN Exposed Pad
Output Configuration	Half Bridge (4)	Other Names	00-0154T 1460-1216-2 TMC2224-LA
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	-
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Logic, UART
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Bipolar Motor Driver Power MOSFET Logic, UART 28-QFN
Current - Output	1.2A	Applications	General Purpose
