TRINAMIC Motion Control GmbH

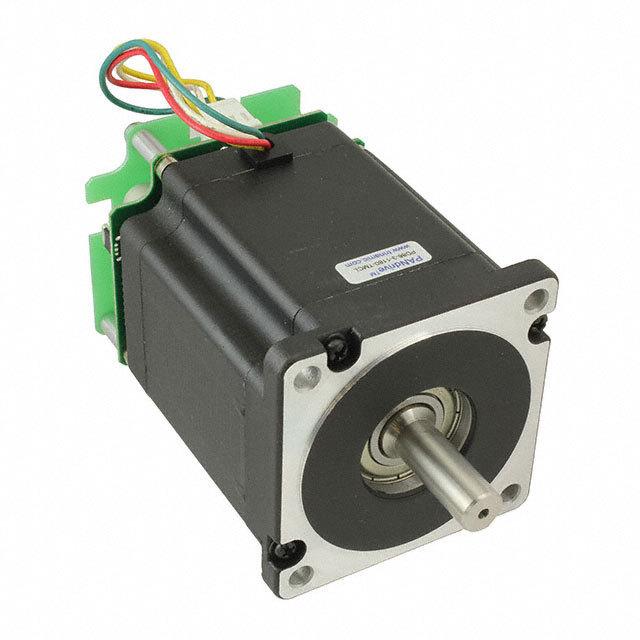

| Part Number | PD86-3-1180-TMCL | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 154 pcs | Data sheet | 1.PD86-3-1180-TMCL.pdf2.PD86-3-1180-TMCL.pdf3.PD86-3-1180-TMCL.pdf |
| Weight | 6.2 lbs (2.8kg) | Voltage - Rated | 48VDC |
| Type | Hybrid | Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Termination Style | Wire Leads with Connector | Steps per Revolution | 200 |
| Step Angle | 1.8° | Size / Dimension | Square - 3.382" x 3.382" (85.90mm x 85.90mm) |
| Series | PANdrive™ | Rotor Inertia | - |
| Other Names | 1460-1122 30-0164 30-0289 |
Operating Temperature | - |
| NEMA Frame Size | 34 | Mounting Hole Spacing | 2.740" (69.60mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Length - Shaft and Bearing | 1.310" (33.27mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Integrated Controller, Flatted Shaft | Diameter - Shaft | 0.500" (12.70mm) |
| Detailed Description | Bipolar Stepper Motor Frame Size 34 200 Step 5.5A 48VDC | Current Rating | 5.5A |
| Coil Type | Bipolar | Approvals | - |
| Accuracy | - |
