TRINAMIC Motion Control GmbH

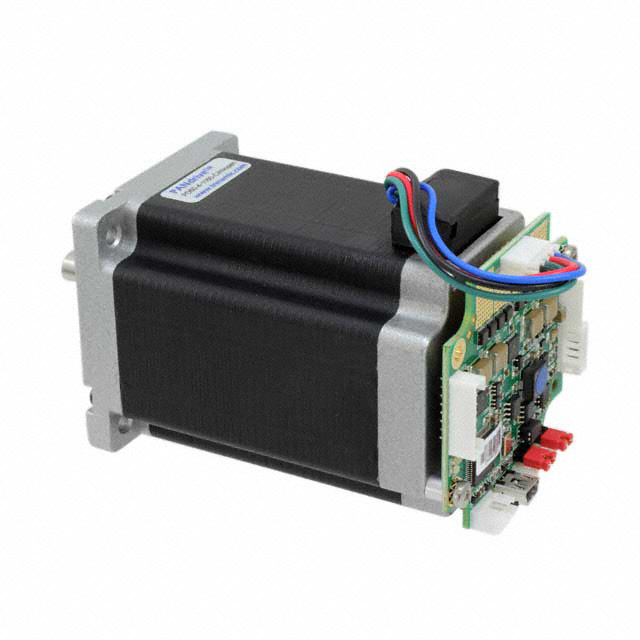

| Part Number | PD60-4-1160-CANOPEN | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 248 pcs | Data sheet | 1.PD60-4-1160-CANOPEN.pdf2.PD60-4-1160-CANOPEN.pdf3.PD60-4-1160-CANOPEN.pdf4.PD60-4-1160-CANOPEN.pdf |
| Weight | - | Voltage - Rated | 48VDC |
| Type | Hybrid | Torque - Holding (oz-in / mNm) | 438.99 / 3100 |
| Termination Style | Wire Leads with Connector | Steps per Revolution | 200 |
| Step Angle | 1.8° | Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| Series | PANdrive™ | Rotor Inertia | - |
| Other Names | 1460-1117 30-0238 30-0278 |
Operating Temperature | - |
| NEMA Frame Size | 24 | Mounting Hole Spacing | 1.856" (47.14mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Length - Shaft and Bearing | 0.945" (24.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Integrated Controller, Flatted Shaft | Diameter - Shaft | 0.315" (8.00mm) |
| Detailed Description | Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 48VDC | Current Rating | 2.8A |
| Coil Type | Bipolar | Approvals | - |
| Accuracy | - |
