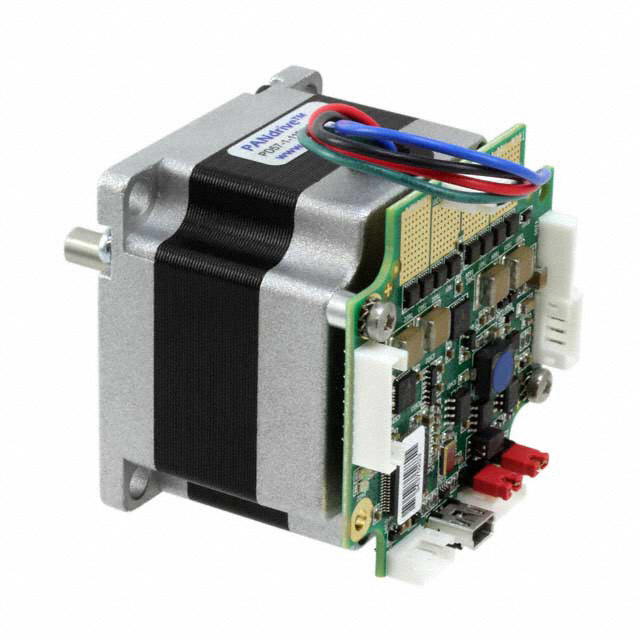

PD57-1-1160-CANOPEN

TRINAMIC Motion Control GmbH

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD57-1-1160-CANOPEN
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEPPER MOTOR HYBRID BIPOLAR 48V
Datasheets:	1.PD57-1-1160-CANOPEN.pdf 2.PD57-1-1160-CANOPEN.pdf 3.PD57-1-1160-CANOPEN.pdf 4.PD57-1-1160-CANOPEN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	297 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 297 pcs

Reference Price (In US Dollars)

1 pcs: $100.479

10 pcs: $97.564

25 pcs: $94.653

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$100.479

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD57-1-1160-CANOPEN

Part Number	PD57-1-1160-CANOPEN	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEPPER MOTOR HYBRID BIPOLAR 48V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	297 pcs	Data sheet	1.PD57-1-1160-CANOPEN.pdf 2.PD57-1-1160-CANOPEN.pdf 3.PD57-1-1160-CANOPEN.pdf 4.PD57-1-1160-CANOPEN.pdf
Weight	-	Voltage - Rated	48VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	77.89 / 550
Termination Style	Wire Leads with Connector	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Series	PANdrive™	Rotor Inertia	-
Other Names	1460-1114 30-0235 30-0275	Operating Temperature	-
NEMA Frame Size	24	Mounting Hole Spacing	1.856" (47.14mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Length - Shaft and Bearing	0.945" (24.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Integrated Controller, Flatted Shaft	Diameter - Shaft	0.250" (6.35mm)
Detailed Description	Bipolar Stepper Motor Frame Size 24 200 Step 2.8A 48VDC	Current Rating	2.8A
Coil Type	Bipolar	Approvals	-
Accuracy	-
