PD42-3-1370-TMCL

TRINAMIC Motion Control GmbH

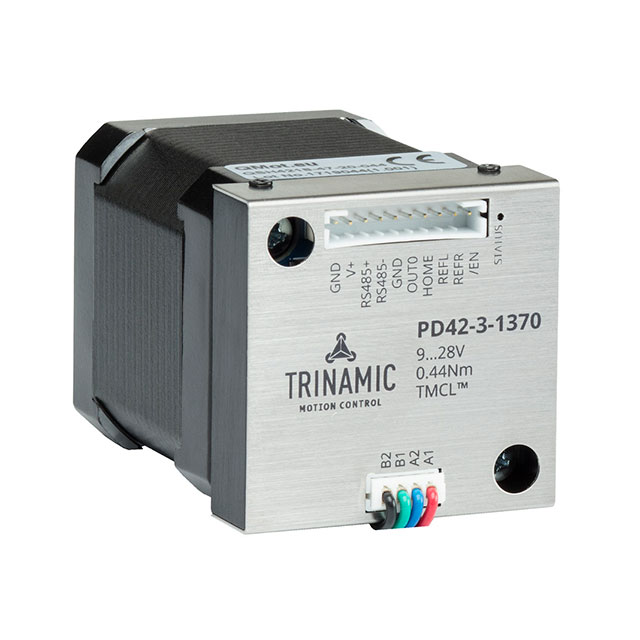

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD42-3-1370-TMCL
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	PANDRIVE NEMA17, 24V, 0.44NM
Datasheets:	1.PD42-3-1370-TMCL.pdf 2.PD42-3-1370-TMCL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	357 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 357 pcs

Reference Price (In US Dollars)

1 pcs: $85.758

10 pcs: $71.526

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$85.758

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD42-3-1370-TMCL

Part Number	PD42-3-1370-TMCL	Manufacturer	TRINAMIC Motion Control GmbH
Description	PANDRIVE NEMA17, 24V, 0.44NM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	357 pcs	Data sheet	1.PD42-3-1370-TMCL.pdf 2.PD42-3-1370-TMCL.pdf
Weight	-	Voltage - Rated	2.4VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	62.31 / 440
Termination Style	Connector	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 1.665" x 1.665" (42.30mm x 42.30mm)
Series	PANdrive™	Rotor Inertia	68gcm²
Other Names	1460-1315 30-0326	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	17	Mounting Hole Spacing	1.220" (31.00mm)
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	8 Weeks
Length - Shaft and Bearing	0.945" (24.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Integrated Controller, Flatted Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 2A 2.4VDC	Current Rating	2A
Coil Type	Bipolar	Coil Resistance	1.4 Ohms
Approvals	-	Accuracy	±5%
