PD42-2-1270-TMCL

TRINAMIC Motion Control GmbH

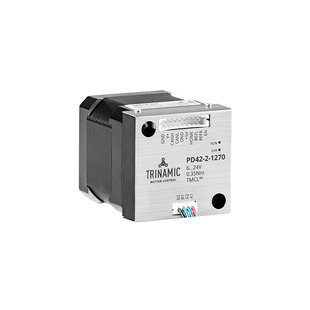

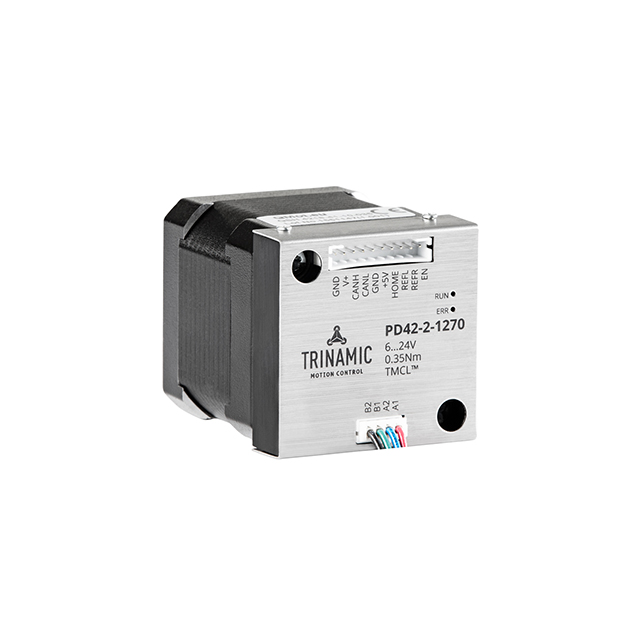

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD42-2-1270-TMCL
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	PANDRIVE NEMA17, 24V, 50 OZ IN/
Datasheets:	1.PD42-2-1270-TMCL.pdf 2.PD42-2-1270-TMCL.pdf 3.PD42-2-1270-TMCL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	580 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 580 pcs

Reference Price (In US Dollars)

1 pcs: $50.978

10 pcs: $49.158

25 pcs: $48.429

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$50.978

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD42-2-1270-TMCL

Part Number	PD42-2-1270-TMCL	Manufacturer	TRINAMIC Motion Control GmbH
Description	PANDRIVE NEMA17, 24V, 50 OZ IN/	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	580 pcs	Data sheet	1.PD42-2-1270-TMCL.pdf 2.PD42-2-1270-TMCL.pdf 3.PD42-2-1270-TMCL.pdf
Weight	0.529 lb (239.95g)	Voltage - Rated	24VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	51 / 360
Termination Style	Connector	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Series	PANdrive™	Rotor Inertia	57gcm²
Other Names	1460-1206 30-0298	Operating Temperature	-20°C ~ 50°C
NEMA Frame Size	17	Mounting Hole Spacing	1.220" (31.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Length - Shaft and Bearing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Integrated Controller, Round Shaft	Diameter - Shaft	-
Detailed Description	Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 1A 24VDC	Current Rating	1A
Coil Type	Bipolar	Coil Resistance	1.2 Ohms
Approvals	-	Accuracy	±5%
