TRINAMIC Motion Control GmbH

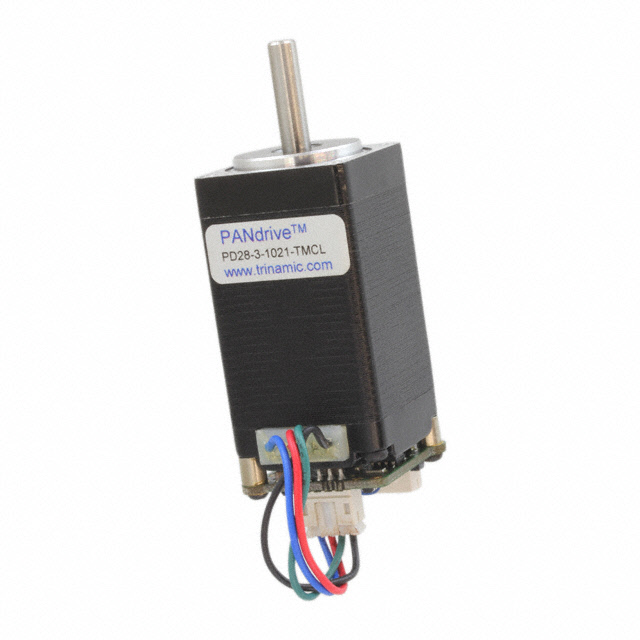

| Part Number | PD28-3-1021-TMCL | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 510 pcs | Data sheet | 1.PD28-3-1021-TMCL.pdf2.PD28-3-1021-TMCL.pdf3.PD28-3-1021-TMCL.pdf |
| Weight | 0.242 lb (109.77g) | Voltage - Rated | 24VDC |
| Type | Hybrid | Torque - Holding (oz-in / mNm) | 16.99 / 120 |
| Termination Style | Wire Leads with Connector | Steps per Revolution | 200 |
| Step Angle | 1.8° | Size / Dimension | Square - 1.100" x 1.100" (28.00mm x 28.00mm) |
| Series | PANdrive™ | Rotor Inertia | - |
| Other Names | 1460-1098 30-0180 30-0242 PD28-3-1021 |
Operating Temperature | - |
| NEMA Frame Size | 11 | Mounting Hole Spacing | 0.906" (23.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Length - Shaft and Bearing | 0.787" (20.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Integrated Controller, Flatted Shaft | Diameter - Shaft | 0.197" (5.00mm) |
| Detailed Description | Bipolar Stepper Motor Frame Size 11 200 Step 0.7A 24VDC | Current Rating | 700mA |
| Coil Type | Bipolar | Approvals | - |
| Accuracy | - |
