ZWD100PAF0524/J

TDK-Lambda Americas, Inc.

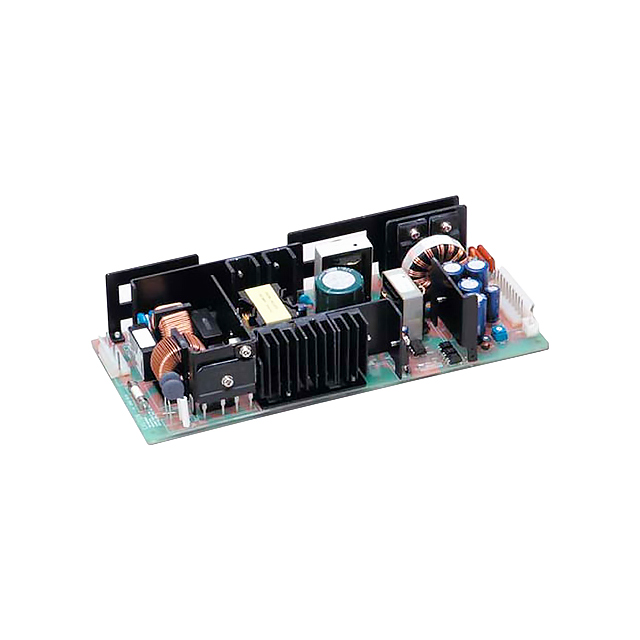

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ZWD100PAF0524/J
Manufacturer/Brand:	TDK-Lambda Americas, Inc.
Product description	AC/DC CONVERTER 5V 24V 100W
Datasheets:	1.ZWD100PAF0524/J.pdf 2.ZWD100PAF0524/J.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1080 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1080 pcs

Reference Price (In US Dollars)

1 pcs: $36.485

10 pcs: $34.296

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$36.485

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ZWD100PAF0524/J

Part Number	ZWD100PAF0524/J	Manufacturer	TDK-Lambda Americas, Inc.
Description	AC/DC CONVERTER 5V 24V 100W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1080 pcs	Data sheet	1.ZWD100PAF0524/J.pdf 2.ZWD100PAF0524/J.pdf
Voltage - Output 4	-	Voltage - Output 3	-
Voltage - Output 2	24V	Voltage - Output 1	5V
Voltage - Isolation	3kV	Voltage - Input	85 ~ 265 VAC
Type	Open Frame	Size / Dimension	8.74" L x 2.95" W x 1.38" H (222.0mm x 75.0mm x 35.0mm)
Series	ZWD-PAF	Power (Watts)	100W
Other Names	285-2881 ZWD100PAF0524/J-ND	Operating Temperature	-10°C ~ 70°C (With Derating)
Number of Outputs	2	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Load Required	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input	Efficiency	79%
Detailed Description	Open Frame AC DC Converter 2 Output 5V 24V 5A, 4A 85 ~ 265 VAC Input	Current - Output (Max)	5A, 4A
Approvals	CE	Applications	ITE (Commercial)
