SWT100-525

TDK-Lambda Americas, Inc.TDK-Lambda Americas, Inc.

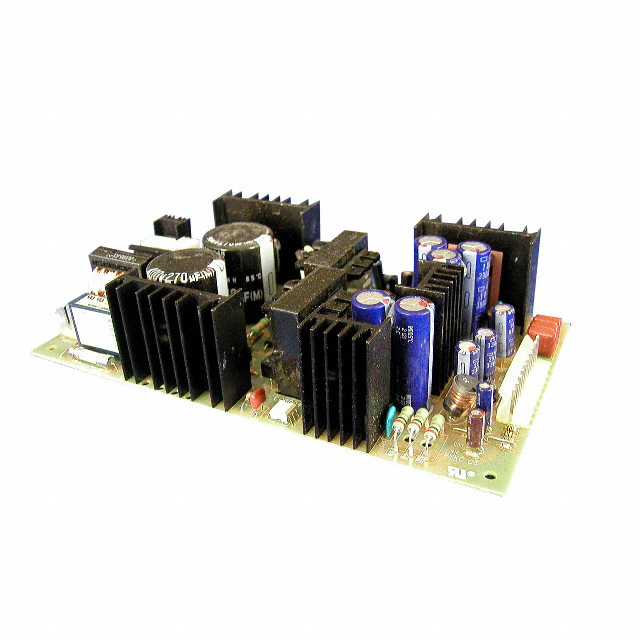

SWT100-525 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SWT100-525
Manufacturer/Brand: TDK-Lambda Americas, Inc.
Product description AC/DC CONVERTER 5V 12V -5V 100W
Datasheets: 1.SWT100-525.pdf2.SWT100-525.pdf3.SWT100-525.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 828 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 828 pcs
Reference Price (In US Dollars)
1 pcs
$46.878
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$46.878

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SWT100-525

Part Number SWT100-525 Manufacturer TDK-Lambda Americas, Inc.
Description AC/DC CONVERTER 5V 12V -5V 100W Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 828 pcs Data sheet 1.SWT100-525.pdf2.SWT100-525.pdf3.SWT100-525.pdf
Voltage - Output 4 - Voltage - Output 3 -5V
Voltage - Output 2 12V Voltage - Output 1 5V
Voltage - Isolation 3kV Voltage - Input 85 ~ 265 VAC
Type Open Frame Size / Dimension 7.75" L x 4.25" W x 1.77" H (196.9mm x 108.0mm x 45.0mm)
Series SWT Power (Watts) 100W
Other Names 285-1066
SWT100525		 Operating Temperature 0°C ~ 50°C
Number of Outputs 3 Mounting Type Chassis Mount
Minimum Load Required Yes Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features DC Input Capable, Universal Input Efficiency 74%
Detailed Description Open Frame AC DC Converter 3 Output 5V 12V -5V 8A, 4A, 800mA 85 ~ 265 VAC Input Current - Output (Max) 8A, 4A, 800mA
Approvals CE, cUR, UR Applications ITE (Commercial)
