PXB15-48WD05/N

TDK-Lambda Americas, Inc.

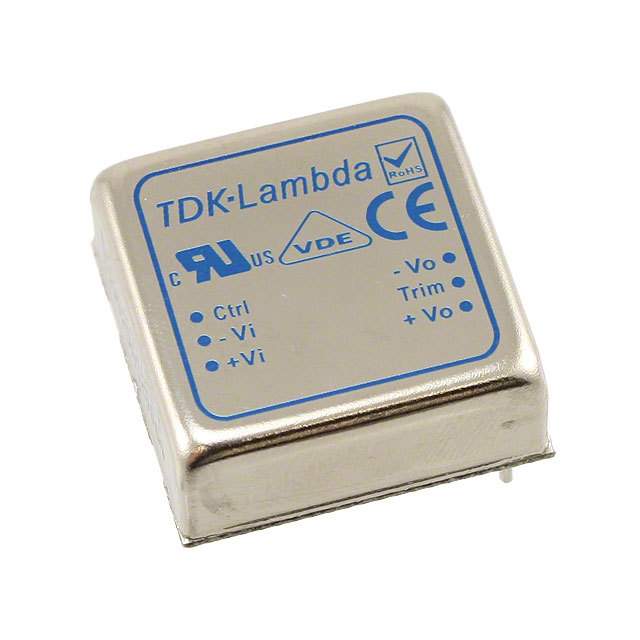

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PXB15-48WD05/N
Manufacturer/Brand:	TDK-Lambda Americas, Inc.
Product description	DC DC CONVERTER +/-5V 15W
Datasheets:	1.PXB15-48WD05/N.pdf 2.PXB15-48WD05/N.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1468 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1468 pcs

Reference Price (In US Dollars)

1 pcs: $22.256

10 pcs: $21.526

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$22.256

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PXB15-48WD05/N

Part Number	PXB15-48WD05/N	Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CONVERTER +/-5V 15W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1468 pcs	Data sheet	1.PXB15-48WD05/N.pdf 2.PXB15-48WD05/N.pdf
Voltage - Output 3	-	Voltage - Output 2	-5V
Voltage - Output 1	5V	Voltage - Isolation	1.6kV
Voltage - Input (Min)	18V	Voltage - Input (Max)	75V
Type	Isolated Module	Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Series	PXB	Power (Watts)	15W
Packaging	Tube	Package / Case	6-DIP Module
Other Names	285-1908 PXB15-48WD05/NT PXB1548WD05/N PXB1548WD05/NT PXB1548WD05N	Operating Temperature	-40°C ~ 85°C
Number of Outputs	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Remote On/Off, OCP, OVP, SCP
Efficiency	85%	Detailed Description	Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 18V - 75V Input
Current - Output (Max)	1.5A, 1.5A	Control Features	Enable, Active Low
Applications	ITE (Commercial)
