TDK-Lambda Americas, Inc.
| Part Number | CUT755FF/A | Manufacturer | TDK-Lambda Americas, Inc. |
|---|---|---|---|

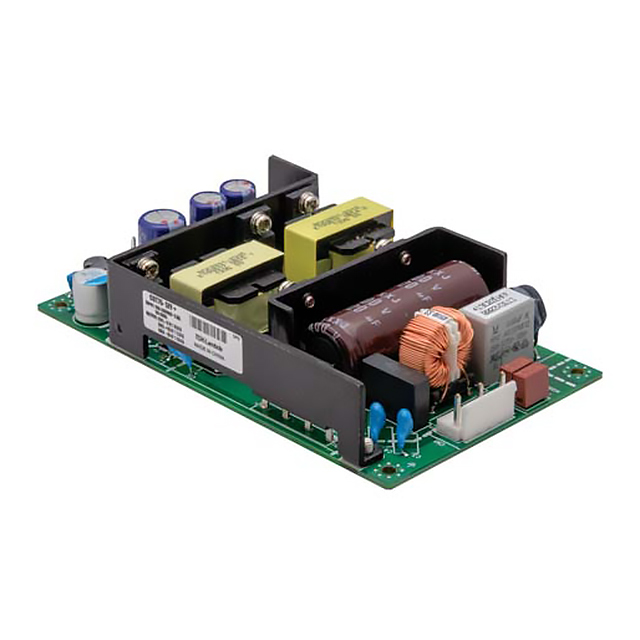

| Description | AC/DC CONVERTER 5V +/-15V 75W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1132 pcs | Data sheet | 1.CUT755FF/A.pdf2.CUT755FF/A.pdf3.CUT755FF/A.pdf4.CUT755FF/A.pdf5.CUT755FF/A.pdf |
| Voltage - Output 4 | - | Voltage - Output 3 | -15V |
| Voltage - Output 2 | 15V | Voltage - Output 1 | 5V |
| Voltage - Isolation | 3kV | Voltage - Input | 85 ~ 265 VAC |
| Type | Open Frame | Size / Dimension | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
| Series | CUT75 | Power (Watts) | 75W |
| Other Names | 285-2843 CUT755FF/A-ND |
Operating Temperature | -20°C ~ 70°C (With Derating) |
| Number of Outputs | 3 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | Not Applicable | Minimum Load Required | No |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Adjustable Output, DC Input Capable, Universal Input | Efficiency | 85% |
| Detailed Description | Open Frame AC DC Converter 3 Output 5V 15V -15V 8A, 2.5A, 1A 85 ~ 265 VAC Input | Current - Output (Max) | 8A, 2.5A, 1A |
| Approvals | CE, TUV | Applications | ITE (Commercial) |
