CC1R5-4812DF-E

TDK-Lambda Americas, Inc.

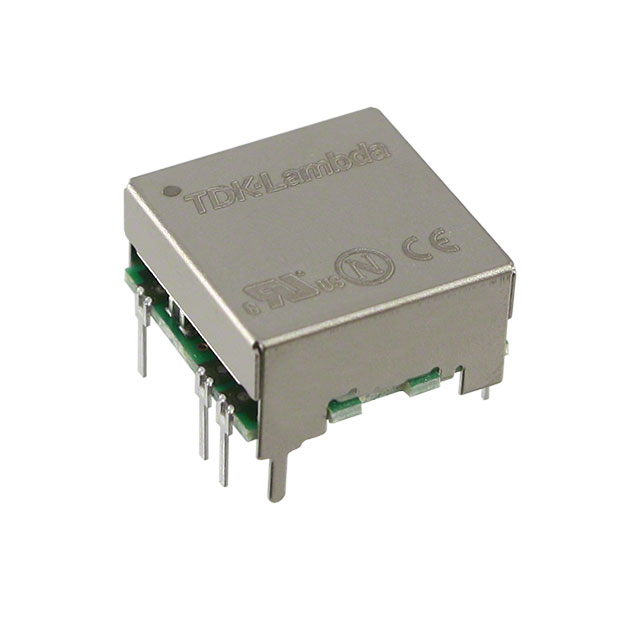

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CC1R5-4812DF-E
Manufacturer/Brand:	TDK-Lambda Americas, Inc.
Product description	DC DC CNVRTR +/-12V TO +/-15V 1W
Datasheets:	1.CC1R5-4812DF-E.pdf 2.CC1R5-4812DF-E.pdf 3.CC1R5-4812DF-E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10996 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10996 pcs

Reference Price (In US Dollars)

1 pcs: $3.504

10 pcs: $3.338

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.504

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CC1R5-4812DF-E

Part Number	CC1R5-4812DF-E	Manufacturer	TDK-Lambda Americas, Inc.
Description	DC DC CNVRTR +/-12V TO +/-15V 1W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10996 pcs	Data sheet	1.CC1R5-4812DF-E.pdf 2.CC1R5-4812DF-E.pdf 3.CC1R5-4812DF-E.pdf
Voltage - Output 3	-	Voltage - Output 2	-12 ~ -15 V
Voltage - Output 1	12 ~ 15 V	Voltage - Isolation	500V
Voltage - Input (Min)	36V	Voltage - Input (Max)	76V
Type	Isolated Module	Size / Dimension	0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
Series	CC-E	Power (Watts)	1W
Packaging	Tray	Package / Case	7-DIP Module
Other Names	445-3312 CC1R5-4812DF-E-ND CC1R54812DFE	Operating Temperature	-40°C ~ 85°C
Number of Outputs	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Efficiency	-	Detailed Description	Isolated Module DC DC Converter 2 Output 12 ~ 15 V -12 ~ -15 V 60mA, 60mA 36V - 76V Input
Current - Output (Max)	60mA, 60mA	Control Features	Enable, Active Low
Applications	ITE (Commercial)
