ZCYS51R5-M4PAT-01

TDK Corporation

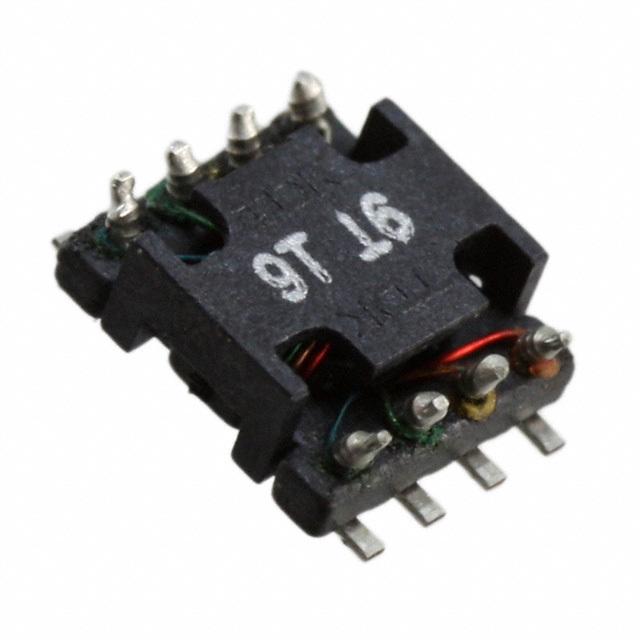

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ZCYS51R5-M4PAT-01
Manufacturer/Brand:	TDK Corporation
Product description	CMC 500MA 4LN 200 OHM SMD
Datasheets:	ZCYS51R5-M4PAT-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5909 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5909 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ZCYS51R5-M4PAT-01

Part Number	ZCYS51R5-M4PAT-01	Manufacturer	TDK Corporation
Description	CMC 500MA 4LN 200 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5909 pcs	Data sheet	ZCYS51R5-M4PAT-01.pdf
Voltage Rating - DC	50V	Voltage Rating - AC	-
Size / Dimension	0.224" L x 0.276" W (5.70mm x 7.00mm)	Series	ZCYS
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	-	Other Names	445-6697-2 ZCYS51R5M4PAT01
Operating Temperature	-25°C ~ 85°C	Number of Lines	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impedance @ Frequency	200 Ohms @ 100MHz
Height (Max)	0.098" (2.50mm)	Filter Type	Signal Line
Features	-	Detailed Description	4 Line Common Mode Choke Surface Mount 200 Ohms @ 100MHz 500mA DCR 200 mOhm
DC Resistance (DCR) (Max)	200 mOhm	Current Rating (Max)	500mA
Approvals	-
