WT-525225-20K2-A1-G

TDK Corporation

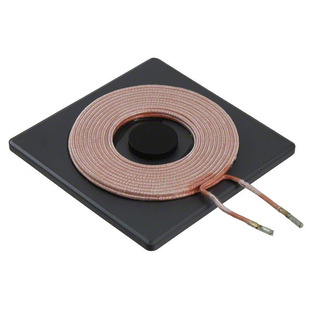

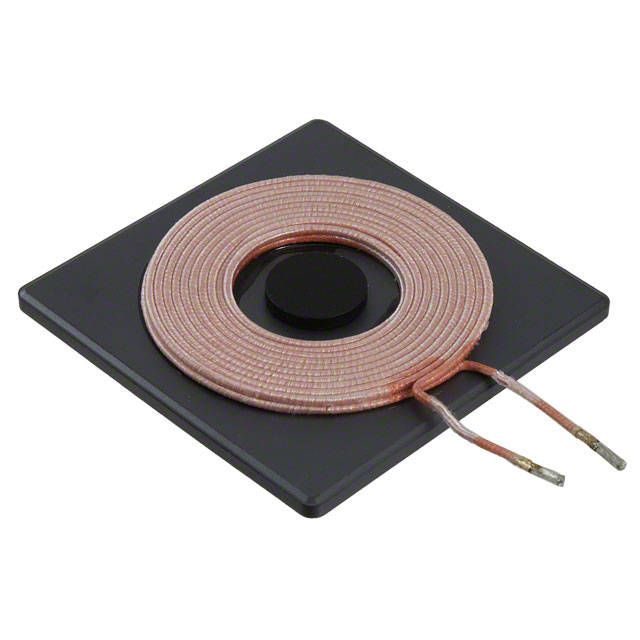

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WT-525225-20K2-A1-G
Manufacturer/Brand:	TDK Corporation
Product description	TRANSMITTER 1 COIL 2 LAYER 24UH
Datasheets:	WT-525225-20K2-A1-G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7081 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7081 pcs

Reference Price (In US Dollars)

1 pcs: $4.743

72 pcs: $3.928

144 pcs: $3.793

504 pcs: $3.603

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.743

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WT-525225-20K2-A1-G

Part Number	WT-525225-20K2-A1-G	Manufacturer	TDK Corporation
Description	TRANSMITTER 1 COIL 2 LAYER 24UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7081 pcs	Data sheet	WT-525225-20K2-A1-G.pdf
Type	1 Coil, 2 Layer	Tolerance	±10%
Size / Dimension	2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm)	Series	WT
Q @ Freq	80 @ 100kHz	Other Names	445-9307 WT525225-20K2-A1-G WT52522520K2A1G
Operating Temperature	-30°C ~ 70°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	24µH	Function	Transmitter
Frequency - Self Resonant	-	Detailed Description	1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100 mOhm Max
DC Resistance (DCR)	100 mOhm Max	Current Rating	-
Current - Saturation	-
