VLB7050HT-R09M

TDK Corporation

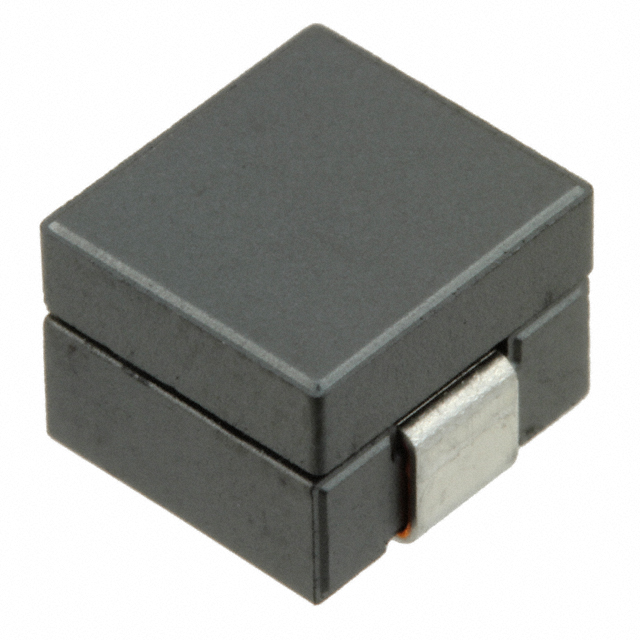

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VLB7050HT-R09M
Manufacturer/Brand:	TDK Corporation
Product description	FIXED IND 90NH 36A 0.27 MOHM SMD
Datasheets:	VLB7050HT-R09M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29783 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29783 pcs

Reference Price (In US Dollars)

1 pcs: $1.311

10 pcs: $1.203

100 pcs: $0.787

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.311

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VLB7050HT-R09M

Part Number	VLB7050HT-R09M	Manufacturer	TDK Corporation
Description	FIXED IND 90NH 36A 0.27 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29783 pcs	Data sheet	VLB7050HT-R09M.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.264" L x 0.244" W (6.70mm x 6.20mm)
Shielding	Unshielded	Series	VLB
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	445-17113-1	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	1MHz
Inductance	90nH	Height - Seated (Max)	0.197" (5.00mm)
Frequency - Self Resonant	-	Detailed Description	90nH Unshielded Wirewound Inductor 36A 0.27 mOhm Max Nonstandard
DC Resistance (DCR)	0.27 mOhm Max	Current Rating	36A
Current - Saturation	64A
