UHV-233A

TDK CorporationTDK Corporation

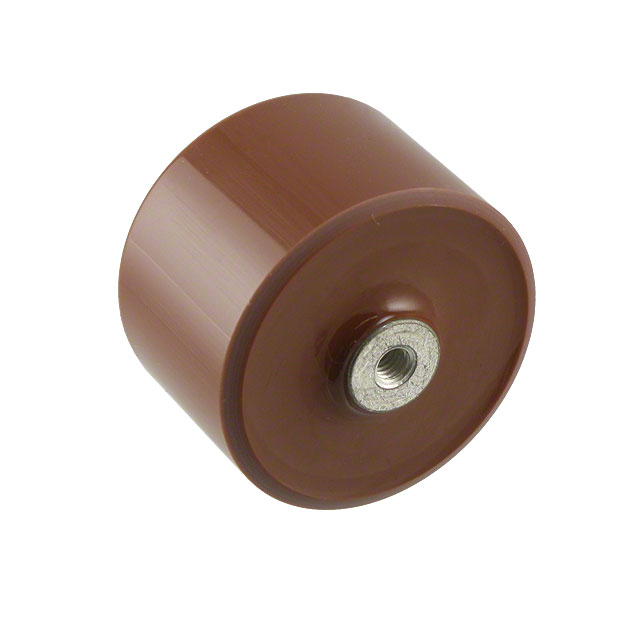

UHV-233A Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: UHV-233A
Manufacturer/Brand: TDK Corporation
Product description CAP CER 700PF 30KV Z5T DISK
Datasheets: UHV-233A.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1272 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1272 pcs
Reference Price (In US Dollars)
1 pcs
$27.458
10 pcs
$25.742
100 pcs
$22.622
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$27.458

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of UHV-233A

Part Number UHV-233A Manufacturer TDK Corporation
Description CAP CER 700PF 30KV Z5T DISK Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1272 pcs Data sheet UHV-233A.pdf
Voltage - Rated 30000V (30kV) Tolerance ±10%
Thickness (Max) - Temperature Coefficient Z5T
Size / Dimension 1.339" Dia x 1.024" L (34.00mm x 26.00mm) Series UHV
Ratings - Packaging Bulk
Package / Case Disk, Metal Fitting - Threaded Other Names 445-2260
60725ZT701K4FDA
B60701895XMC10
UHV-233A-ND
UHV233A
Operating Temperature -30°C ~ 85°C Mounting Type Requires Holder
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 12 Weeks
Lead Style - Lead Spacing -
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) -
Features High Voltage, Low Dissipation Factor Failure Rate -
Detailed Description 700pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded Capacitance 700pF
Applications General Purpose
