SPM6550T-R47M-HZ

TDK Corporation

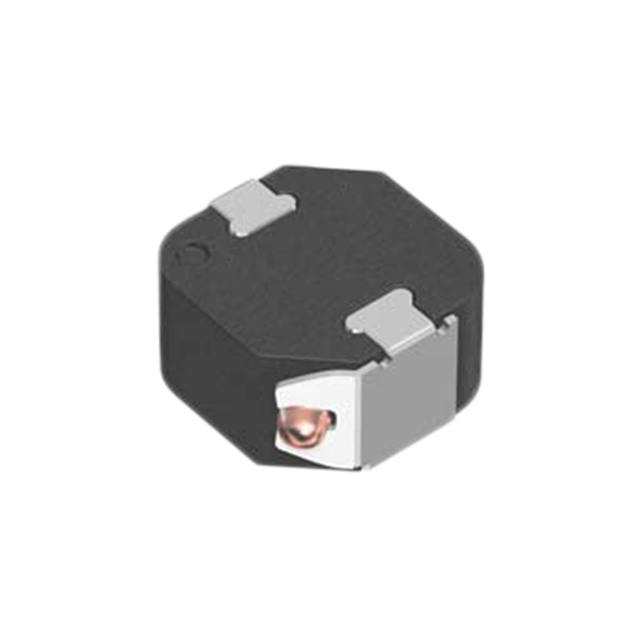

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SPM6550T-R47M-HZ
Manufacturer/Brand:	TDK Corporation
Product description	FIX IND 470NH 26.1A 2.97MOHM SMD
Datasheets:	SPM6550T-R47M-HZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36600 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36600 pcs

Reference Price (In US Dollars)

1 pcs: $0.86

10 pcs: $0.794

100 pcs: $0.556

500 pcs: $0.45

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.86

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SPM6550T-R47M-HZ

Part Number	SPM6550T-R47M-HZ	Manufacturer	TDK Corporation
Description	FIX IND 470NH 26.1A 2.97MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36600 pcs	Data sheet	SPM6550T-R47M-HZ.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.280" L x 0.256" W (7.10mm x 6.50mm)
Shielding	Shielded	Series	SPM-HZ
Ratings	AEC-Q200	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	445-180114-1	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Metal	Manufacturer Standard Lead Time	25 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	470nH	Height - Seated (Max)	0.197" (5.00mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	470nH Shielded Wirewound Inductor 26.1A 2.97 mOhm Max Nonstandard	DC Resistance (DCR)	2.97 mOhm Max
Current Rating	26.1A	Current - Saturation	15.3A
