PC40EER40-Z

TDK Corporation

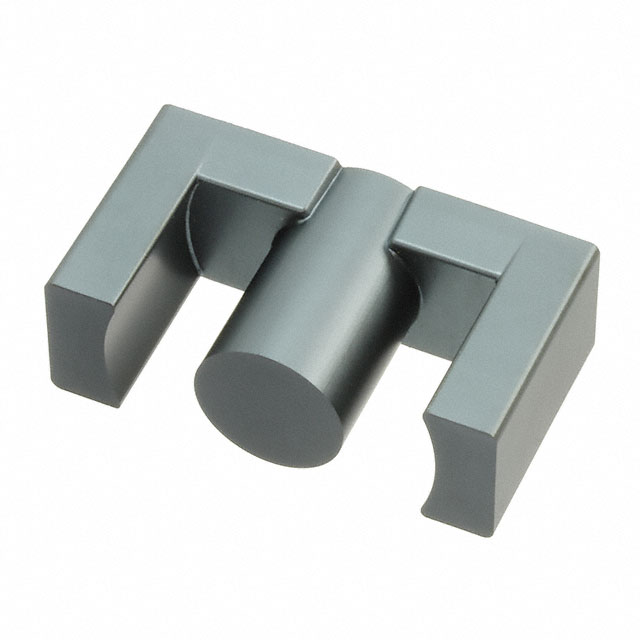

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC40EER40-Z
Manufacturer/Brand:	TDK Corporation
Product description	FERRITE CORE FOR SWITCHING POWER
Datasheets:	PC40EER40-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	98019 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 98019 pcs

Reference Price (In US Dollars)

2 pcs: $0.303

10 pcs: $0.273

64 pcs: $0.192

128 pcs: $0.172

256 pcs: $0.162

512 pcs: $0.152

1024 pcs: $0.131

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.303

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC40EER40-Z

Part Number	PC40EER40-Z	Manufacturer	TDK Corporation
Description	FERRITE CORE FOR SWITCHING POWER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98019 pcs	Data sheet	PC40EER40-Z.pdf
Width	13.30mm	Tolerance	±25%
Supplier Device Package	EER 40	Series	-
Other Names	445-175087	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	PC40	Manufacturer Standard Lead Time	12 Weeks
Length	40.00mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	22.40mm	Gap	Gapped
Finish	Uncoated	Effective Magnetic Volume (Ve) mm³	14600
Effective Length (le) mm	98	Effective Area (Ae) mm²	149
Diameter	-	Core Type	EER
Core Factor (ΣI/A) mm1	0.658
