ACT45B-101-2P-TL003

TDK Corporation

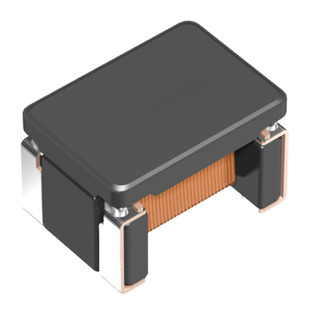

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACT45B-101-2P-TL003
Manufacturer/Brand:	TDK Corporation
Product description	CMC 100UH 150MA 2LN SMD AEC-Q200
Datasheets:	1.ACT45B-101-2P-TL003.pdf 2.ACT45B-101-2P-TL003.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38148 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38148 pcs

Reference Price (In US Dollars)

1 pcs: $0.809

10 pcs: $0.748

100 pcs: $0.523

500 pcs: $0.424

1000 pcs: $0.386

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.809

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACT45B-101-2P-TL003

Part Number	ACT45B-101-2P-TL003	Manufacturer	TDK Corporation
Description	CMC 100UH 150MA 2LN SMD AEC-Q200	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38148 pcs	Data sheet	1.ACT45B-101-2P-TL003.pdf 2.ACT45B-101-2P-TL003.pdf
Voltage Rating - DC	50V	Voltage Rating - AC	-
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)	Series	ACT
Ratings	AEC-Q200	Packaging	Cut Tape (CT)
Package / Case	Horizontal, 4 PC Pad	Other Names	445-3959-1
Operating Temperature	-40°C ~ 150°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	100µH @ 100kHz	Impedance @ Frequency	5.8 kOhms @ 10MHz
Height (Max)	0.118" (3.00mm)	Filter Type	Signal Line
Features	-	Detailed Description	100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 5.8 kOhms @ 10MHz 150mA DCR 2 Ohm
DC Resistance (DCR) (Max)	2 Ohm	Current Rating (Max)	150mA
Approvals	-
