ACM1513-551-2PL-TL

TDK CorporationTDK Corporation

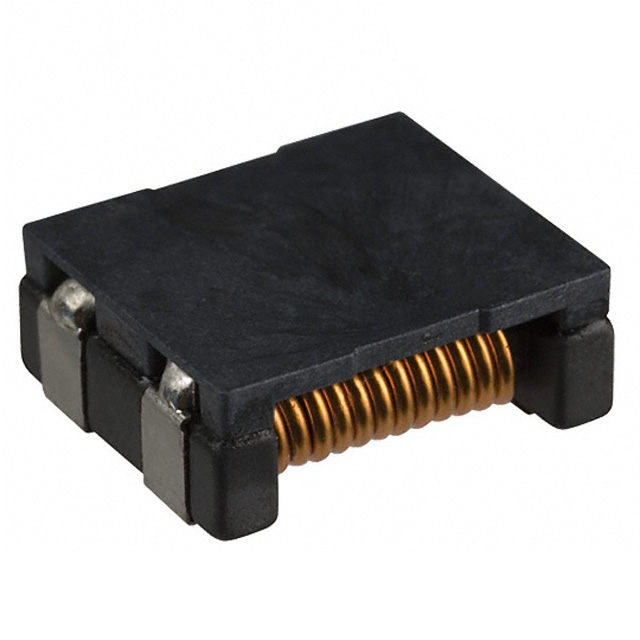

ACM1513-551-2PL-TL Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ACM1513-551-2PL-TL
Manufacturer/Brand: TDK Corporation
Product description CMC 10A 2LN 550 OHM SMD
Datasheets: ACM1513-551-2PL-TL.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4128 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4128 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ACM1513-551-2PL-TL

Part Number ACM1513-551-2PL-TL Manufacturer TDK Corporation
Description CMC 10A 2LN 550 OHM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4128 pcs Data sheet ACM1513-551-2PL-TL.pdf
Voltage Rating - DC 50V Voltage Rating - AC -
Size / Dimension 0.591" L x 0.512" W (15.00mm x 13.00mm) Series ACM
Ratings - Packaging Cut Tape (CT)
Package / Case Horizontal, 4 PC Pad Other Names 445-2211-1
Operating Temperature -40°C ~ 85°C Number of Lines 2
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Impedance @ Frequency 550 Ohms @ 100MHz
Height (Max) 0.236" (6.00mm) Filter Type Power Line
Features - Detailed Description 2 Line Common Mode Choke Surface Mount 550 Ohms @ 100MHz 10A DCR 4 mOhm
DC Resistance (DCR) (Max) 4 mOhm Current Rating (Max) 10A
Approvals -
